Fracarro indoor LTE 5G filter 48 channel

SKU

FRALTE48

Brands: Fracarro

Availability: On request

Delivery: 1 to 7 days

€25.66 Tax included

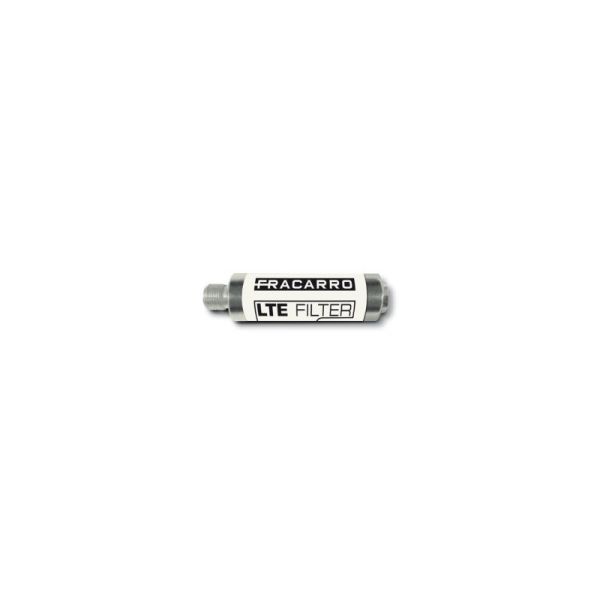

Fracarro 226715 indoor LTE filter

5G LTE filter to adapt your DTT feedback system to the 2nd Digital Dividend, with cut on channel 48 (680 MHz). Low pass filter with high selectivity (45dB) and minimum signal attenuation (2dB). Supports DC current passage for prefeeding.

Small size (70x20x20mm) ideal for installation in small spaces or difficult to access. It is recommended to install prior to the indoor amplifier and protected from the weather.

Details

5G LTE filter cut-off on channel 48 (680 MHz) with DC current passage.

What are the main features of the LTE 5G Fracarro 226715 filter?

High selectivity on LTE frequencies
SAW technology filtering.
High IP protection.
Low insertion loss
High return losses

What technical specifications does the 5G Fracarro 226715 LTE filter have?

Reference	226715
Inputs	1
Impedance	75 Ω
Frequency Band	VHF+UHF - LTE (680MHz)
Insertion Loss	2 dB
Outputs	1
LTE Selectivity	15-45 dB (Downlink) 45 dB (Uplink)
Working Temperature	-10 a +55 ºC
Standard Conformity	EN 50083-2
IP protection	IP66
Dimensions	70x20x20 mm
Weight	0.15 kg

More Information

More Information
EAN	8016978098996
System	DTT
SERIE	F-connector
Color	Silver
TV-SAT Distribution Equipment	Filter
Entorno	Interior
TV-SAT Distribution Connection	F
Cut channel	48
Input signal	UHF
Insertion Loss (dB)	2
Product Brand	Fracarro
