5G outdoor LTE filter for channel 48 with DC pass

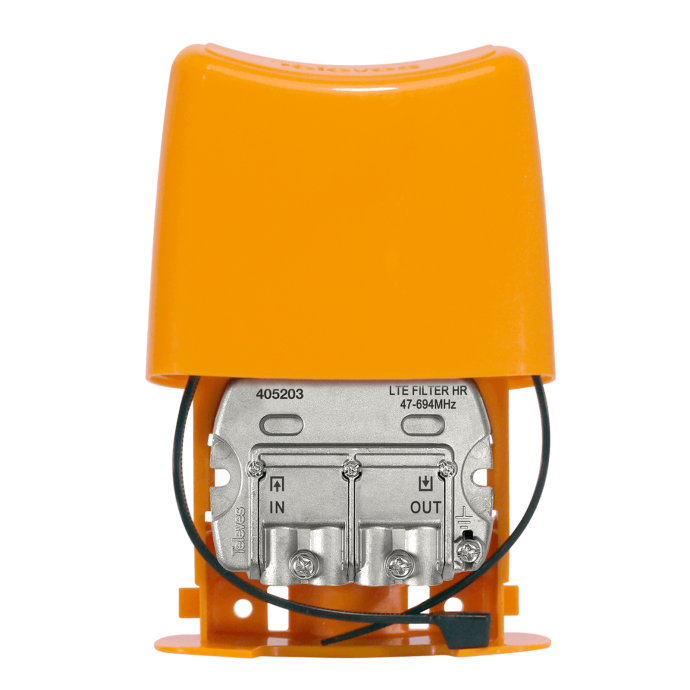

LTE2 Outdoor Televes 405203 Filter
LTE 5G mast filter to adapt your DTT antenna to the 2nd Digital Dividend. This high rejection low pass filter attenuates all the signals that generate interference, making the cut on channel 48 (694 MHz).
It allows the passage of DC current to power the UHF antenna if it is active. It includes the outer chest made of ABS plastic to protect the equipment from the weather. The connections of this filter are "EasyF" flange type to reduce its size and facilitate the connection of the coaxial cable. The flange connections do not use connectors, the coaxial cable is inserted stripped and fastened with a screw.
It is always recommended to install the filter prior to the amplifier of the UHF signal so that it only amplifies the desired signals.
LTE outdoor Televes filter to eliminate interference from the 2nd Digital Dividend with the arrival of 5G.
What are the main features of the Televes LTE 5G Exterior 405203 filter?
- Low insertion losses to avoid any impacts on the distributed signals
- EasyF system: easy, quick and safe connectorization
- Ultra-small ergonomic design
- Fully automated manufacturing, subject to the most stringent quality controls
- High-screening Zamak chassis
- Resistant ABS-plastic case for outdoor installation
- Orange colour
What technical specifications does the Televes LTE 5G Exterior 405203 filter have?
|Frequency margin||MHz||47 - 694||733 - 862|
|Attenuation||dB||< 1||> 25|
|Inputs/Outputs||nº||1 / 1|
|Max current through inputs||mA||300|
|Temperature operat. limits||ºC||-5 ... +45|
|TV-SAT Distribution Equipment||Filter|
|TV-SAT Distribution Connection||Flange|
|Insertion Loss (dB)||1|
