Television Shots

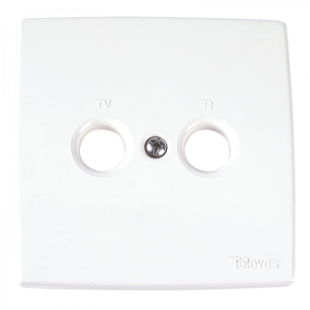

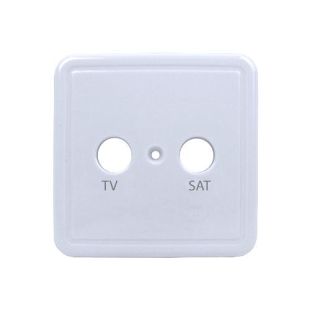

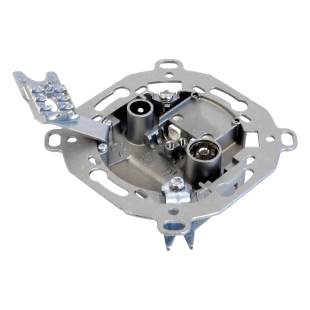

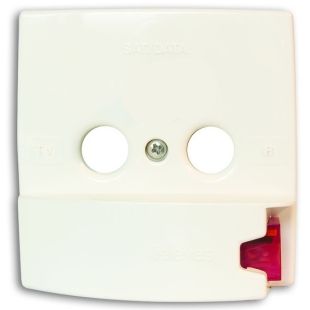

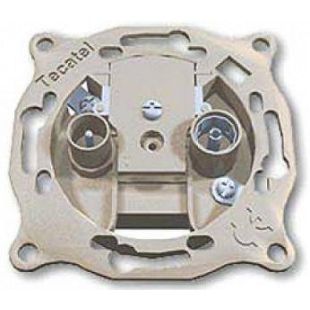

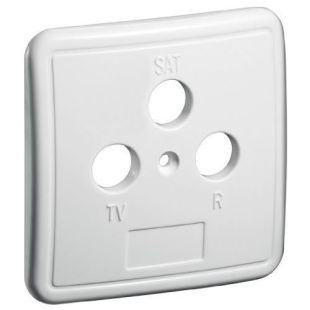

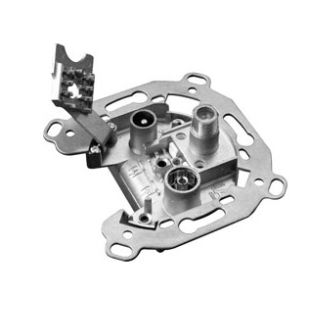

The television taps is on the wall in a box 10 x 10 cm. To this footage you put a decorative cover, or you can use a plug for surface mounting.

To choose a power we must be clear two concepts. There are both final and intermedidas (or pass) jacks:

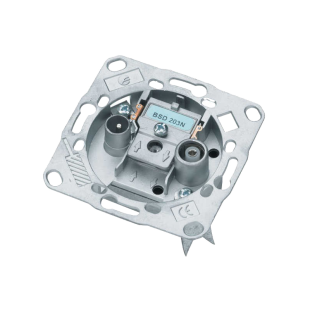

There are caller passing shots are those sockets to which you connect a cable also has another cable outlet for a next shot. This type of connection, one after the other, is called cascading or commonly known as "sewn" shots. The final shots are those where the cable is connected and not leave any cable to any other decision. Is the typical installation where a distributor for several outputs and direct cable for each final shot. This type of installation is known as star facility.

To choose the taps is necessary to know the lost that we have in that signal.

5529,5228,5227,5236, etc...

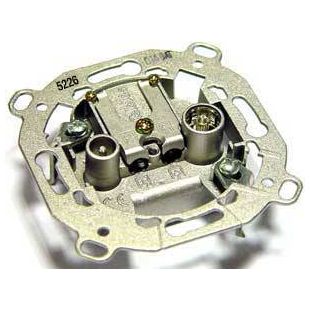

If we have one tap with a cable, it is necessary to choose the tap 5226. If we have two points of television it is necessary to installer 5229 y 5228. If we have 3 points, it is necessary to installer 5229, 5228 and 5227. And so..
