End Outlet for TV/FM, SAT1 and SAT2 by Televes

SKU

TEL524501

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€7.89 Tax included

End outlet for Terrestrial, Radio and 2 Satellites signal

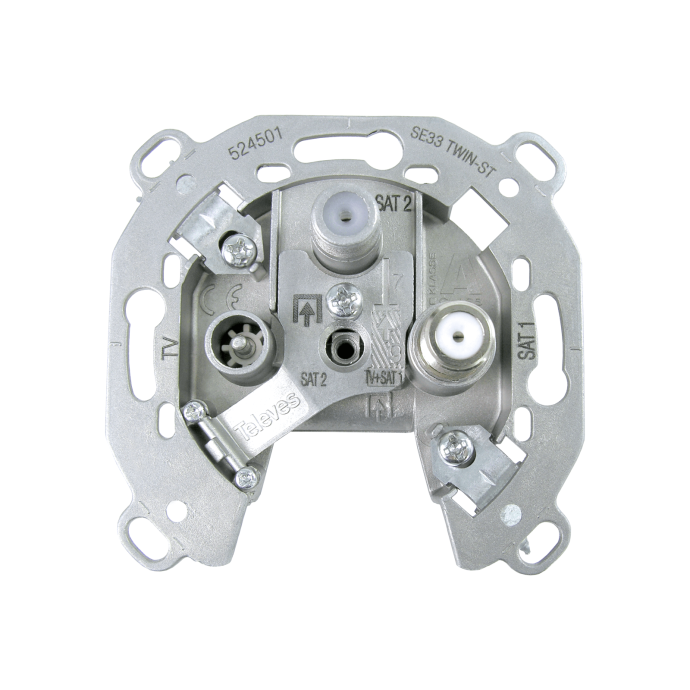

The 524501 socket of Televes has three connectors, one male CEI type for TDT + FM signal and two female F-type connectors for the signal of the satellites in the installation.

This component contains separator filters of great rejection and isolation between the outputs to avoid interferences and signal mixtures.

This socket is compatible with coaxial cables with an outside diameter between 5 and 7mm and live diameter between 0.65 and 1.2mm.

Terminal 524501 Televes outlet of Class A is a high resistance socket manufactured in Zamak.

Details

Terminal socket 524501 Class A with 3 connections with inputs and outputs for terrestrial / radio, satellite1 and satellite2 signals.

What are the main features of Televes 524501?

Class A high shielding.
Great isolation between exits.
Made in Zamak, of great resistance.
DC step from the SAT connector to the entrance.
Compatible with coaxial cables with cover diameter Ø 5 ... 7mm.
Supports living diameters between 0.65 to 1.2mm and outer diameters of the cable from 5 to 6.9mm.
Wide margin in the length of the live (5 to 15mm) that makes short between live and mesh difficult.
The clamp consists of 3 rows serrated in 9mm for a perfect fastening of the mesh.
CE Marking
Indications of inputs and outputs.

What technical specifications does the 524501 Televes terminal take?

Band			FM / TV (47-862MHz)	SAT1 (950-2400MHz)	SAT2 (0-2400MHz)
Connector			“IEC” male	“F” female	“F” female
Isolation	FM/TV - SAT1	dB	20 typ.
	SAT1 - SAT2		30
Attenuation	Out: FM/TV	dB	1
	Out: SAT1		1,5
	Out: SAT2		1
DC Pass		Vdc / A	-	40 / 0,5	50 / 1
