2-Wire Video Intercom Kit + Monitor + MyBell Power Supply

SKU
NICMB2-WKIT
Brands: Nice
€655.00
Tax included
Free shipping
(Iberian Peninsula)
Nice
Availability: On request
1 to 7 days

MyBell 2-Wire Video Door Phone + Monitor + Power Supply Kit

The Nice MB2-WKIT kit is the perfect solution for refurbishing or installing a MyBell 2-wire video door entry system. It includes a 7″ touchscreen indoor monitor, a rugged IP65 outdoor station with 2 Mpx camera and a 24 V DC power supply, everything you need for a quick and hassle-free installation.

Enjoy high clarity video and audio thanks to the camera with 123° viewing angle and noise reducing microphone. Compatible with SIP and ONVIF protocols, it facilitates integration with home automation systems and IP telephony. The monitor, with Linux system and capacitive screen, offers an intuitive interface and call history support.

Designed for residential and commercial environments, this kit stands out for its water and dust resistance (IP65/IK), night vision and access control capabilities (SMS, remote door opening). All combined in a sleek, easy-to-install package. Everything you need to see who's knocking on your door... no complicated building work or wiring!

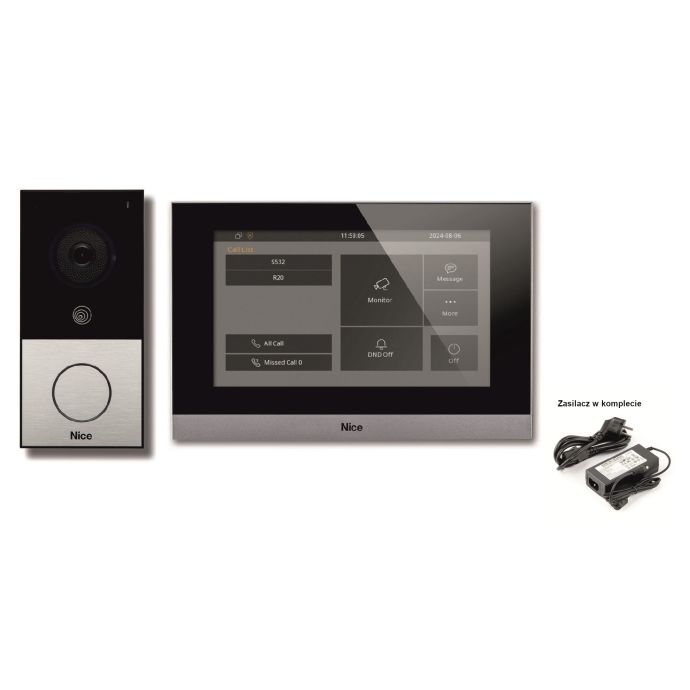

Package contents:

  • MyBell 2-wire 1-button outdoor station (IP65).
  • MyBell 2-wire 7″ indoor monitor (capacitive panel, Linux)
  • 24 V DC power supply


All in one: elegant design, easy installation and crystal clear communication - your MyBell ready in minutes!

Technical Specifications of the Nice 2-Wire Video Intercom Kit with 7” IP67 Monitor

Parameter

Specification

Brand

Nice (MyBell)

Reference

MB2‑WKIT

Type

2‑wire video intercom kit (monitor + station + power)

Outdoor station

IP65, 1-button, 2 Mpx camera, 123° view angle

Indoor monitor

7″ capacitive, Linux OS, 800×480, two‑way audio

Protocols

SIP, ONVIF, local call

Power supply

Internal 24 V DC

Operating temp

–40 °C to +60 °C (outdoor)

Outdoor dimensions

146×70×23 mm

Monitor dimensions

200×132×27 mm

2-wire cable support

Up to 300 m (depends on gauge)





Technical specifications:

Video intercom:

  • Image resolution: Max. 2 MP Full HD 1080p
  • Viewing range: 123° (H) / 69° (V)
  • Proximity card reader: Yes, 13.56 MHz
  • Two-way communication: Yes, with noise reduction.
  • Night Mode: Yes, White LED
  • IP Rating: IP65
  • Relay Outputs: 1
  • Backup: microSD
  • Wiegand Support: Yes
  • Power: 2-wire from internal monitor
  • Dimensions: 146x70x23mm
  • Operating Temperature: -40°C ~ +60°C

Internal Monitor:

  • Image Resolution: 800x480p
  • Two-Way Communication: Yes, with all panels and external monitors in the system
  • Relay Outputs: 1
  • Power Supply: 24-48V DC
  • Dimensions: 200.2 x 132.2 x 27.2 mm
  • Operating Temperature: -10°C ~ +45°C
  • Screen and Display: 7" TFT capacitive LCD touchscreen
  • Operating System: Linux
  • Memory: 64MB / 128MB RAM/ROM
  • Internet: LAN + WiFi
More Information
Hight0.060
Length0.140
Width0.090
ACCESOS - SISTEMA2 Threads
ACCESOS - SERIEKit
ColorSilver
Color Portero/VideoporteroColor
TypeComplete Kit
Product BrandNice
