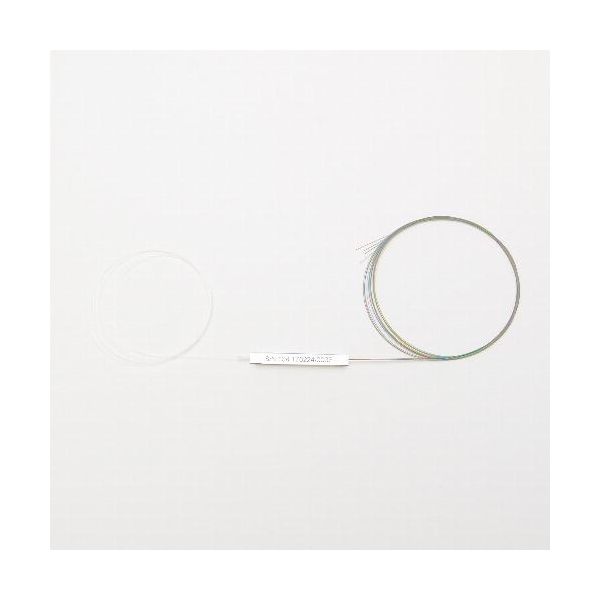

4-way optical splitter without Tecatel FO-070055 connectors

The fiber distributor FO-070055 is an optical signal distributor of one input and four outputs without connectors.

What technical characteristics does the optical distributor FO-070055 have?

• Fiber optic PLC splitter, mini box type, 1 input and 4 outputs, 250 μm
• Length 1 meter
• FTTH
• CATV system
• Network protection
• Access / Distribution PON
• Local area networks (LAN)
• Meets ICT2 regulations

What technical specifications does the optical distributor FO-070055 have?

• Operating wavelength: 1.260 / 1.650 nm
• Maximum insertion loss: 3.8 dB
• Maximum loss of uniformity: 0.8 dB
• Maximum PLD: 0.2 dB
• Return loss: ≥ 50 dB
• Directivity: ≥ 55 dB
• Working temperature range: -40 ºC ~ +85 ºC
• Fiber specifications
• Fiber type: G657-A2 single mode
• Fiber length: 1 m
• Coating diameter: 250 μm
• Working temperature range: -40 ºC ~ +85 ºC
