8-port 10/100 Mbps switch with 4 POE ports

SKU

TL-SF1008P

Brands: Tplink

Availability: In stock

Delivery: 24/48 Hours

€62.13 Tax included

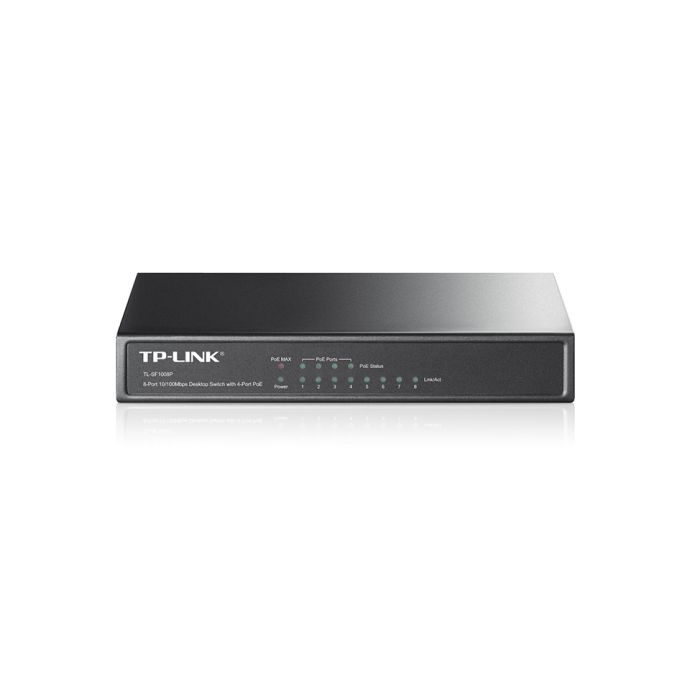

8-port 10/100 Mbps TL-SF1008P switch with 4 TP-Link POE ports.

The TL-SF1008P switch is a 10 / 100Mbps 8-port switch that requires no configuration and also offers 4 PoE (Power over Ethernet) ports. This switch can automatically detect and power all IEEE 802.3af compliant power devices. In this situation, the electrical energy is transmitted together with the data in a single cable that allows you to expand your network to where there are no plugs, where you want to fix devices such as access points, IP cameras, IP phones, etc.

The TL-SF1008P also incorporates the priority function, which will help protect the system when system power is overloaded.

Details

The TL-SF1008P switch has 8 ports, but also incorporates four PoE ports. It is compatible with devices conforming to the IEEE 802.3af standard and does not require any configuration or installation.

What technical characteristics does the Switch TL-SF1008P have?

Supports PoE power up to 15.4 W for each PoE port
Supports PoE power up to 57 W for all PoE ports
Supports devices that support the IEEE 802.3af PoE standard
Supports IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode
The TL-SF1008P has a 2K MAC address table and supports automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
Includes led indicators to monitor power, link status, activity and speed
External Power Supply

What specifications does the TL-SF1008P Switch have?

8-port 10/100 Mbps RJ45 interface
Automatic negotiation, Automatic MDI / MDIX
Network Media:
10BASE-T: UTP cable category 3, 4, 5 (100 meters maximum)
EIA / TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP cable categories 5, 5e (maximum 100 meters)
EIA / TIA-568 100Ω STP (maximum 100 m)
No fans
Maximum Power Consumption (PoE on): 60.2W (220V / 50Hz)
Maximum (PoE off): 3.2W (220V / 50Hz)
External power supply (output: 48 V DC / 1.25 A)
PoE Ports (RJ45) Standard: 802.3 compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth 1.6Gbps
MAC Address Table 2k
Dimensions of 6.7 * 3.9 * 1.1 inches (171 * 98 * 27 mm)
SOFTWARE FEATURES
Store-And-Forward Transmission Method
Supports devices compatible with the IEEE 802.3af standard
Priority function
Automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode
Certifications FCC, CE, RoHS
Consumption 2.3 W (maximum without any connected device)
59.3W (maximum with devices connected with a consumption of 57 W)
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
