Comelit 6-Input 6-Triac-Output Actuator for BUSing System

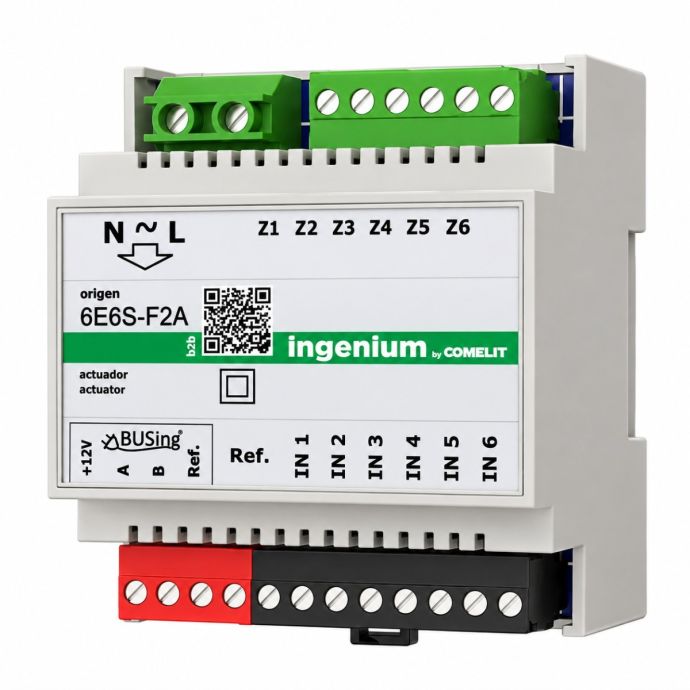

ORIGEN BUSing Actuator with 6 Inputs and 6 Triac Outputs Comelit 6E6S-F2A

The Comelit 6E6S-F2A Actuator is an ORIGEN range module specifically designed for home automation installations using the BUSing® system. It centralises electrical load control and receives commands from push buttons, switches and other contacts, integrating directly into the Ingenium by Comelit BUSing network. It is a versatile solution for smart homes and buildings requiring additional automation functions.

This F2A version features 6 electronic triac outputs, internally connected to the device's power supply phase, with a maximum switching capacity of 12 A across all outputs. By using triacs instead of mechanical contacts, it is particularly suitable for projects requiring electronic switching. The outputs can manage up to 6 loads and configure automation functions compatible with the BUSing installation.

The actuator also provides 6 low-voltage inputs referenced to the BUS ground, which can be programmed according to the requirements of the installation. Its integration with the BUSing® protocol makes it particularly suitable for professional installers who need to combine inputs and outputs within a single automation module. See our range of home automation and Comelit solutions to complete the system.

The Comelit 6E6S-F2A is an actuator for the BUSing® system, suitable for both new ORIGEN installations and compatible BUSing system expansions; therefore, it is not intended solely as a replacement part. Its six inputs and six triac outputs allow multiple control and automation functions to be centralised in a single device, simplifying the design of the home automation control panel.

Reference: COMING-6E6S-F2A
