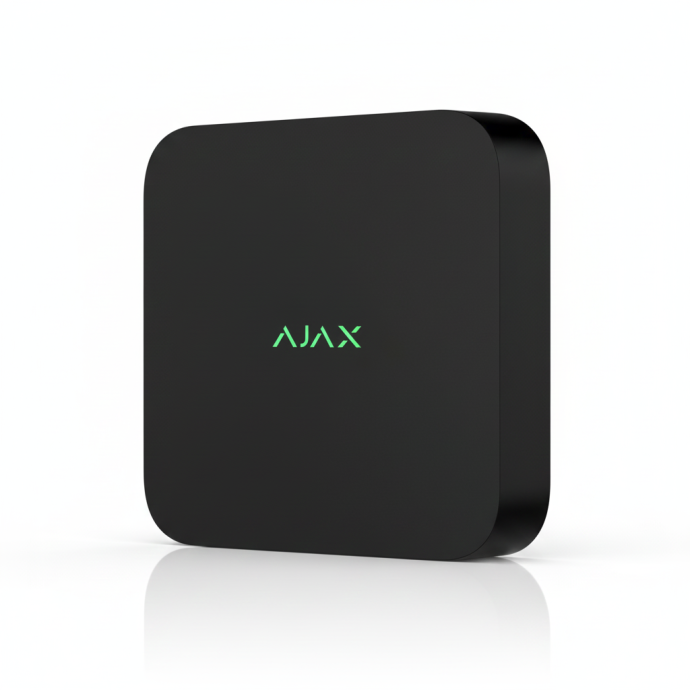

Ajax 8-Channel 8MP NVR Recorder, 12V DC Power Supply, Black

SKU
AJ-NVR108-DC-B
Brands: AJAX
€248.49
Tax included
Availability: In stock
1 to 7 days

NVR Ajax AJ-NVR108-DC-W 8 Channels 4K Black Fanless for Professional Video Surveillance

Ajax AJ-NVR108-DC-B it's a 8 channel black NVR recorder Designed to offer high quality video in businesses, offices and small businesses that need a modern and silent surveillance system. Its operation without fan It guarantees stable and totally silent performance, ideal for work spaces or areas open to the public.

This model supports cameras ONVIF/RTSP, allowing it to be integrated with the majority of IP cameras on the market. Offers recording in 4K (25/30 FPS) and a bandwidth of up to 100Mbps, ensuring smooth transmissions even with several channels in high definition. Additionally, it supports a 3.5” HDD up to 16TB, perfect for storing long days of recording without the need for early overwriting.

Designed for professional installations, it incorporates a anti-tamper switch, updates remote OTAs, and two power options: AC and DC low voltage , which facilitates its integration into headers, racks or systems with auxiliary power. Its remote management through App Ajax It allows you to view cameras, review events or keep your equipment updated without having to travel.

Overall, it is a solution compact, stable and very flexible, ideal for any modern video surveillance project that requires remote control, high storage capacity and silent operation.

Reference: AJ-NVR108-DC-B

-
+

Especificaciones técnicas del Grabador 8 Canales 8Mpx Negro de Ajax AJ-NVR108-DC-B

Practical Applications of Ajax NVR AJ-NVR108-DC-B

Practical case 1: Commercial premises, offices and businesses that require silent video surveillance

Thanks to its design fanless , this NVR can be installed in counters, offices, small server rooms or shops where any noise can be annoying. Your ability to work with cameras ONVIF/RTSP allows you to reuse existing cameras or integrate new ones without limitations. The support for 16 TB Provides enough storage for weeks of continuous recording in 4K resolution.

Case study 2: Professional installations with the need for remote management and flexible power

The AJ-NVR108-DC-W is perfect for installations where the installer must manage equipment remotely. The OTA updates , remote access through the Ajax App and anti-tamper switch improve system control and security. Your double feeding Ac/dc It makes it easy to integrate it into systems with energy backup, centralized sources or electrical panels where service continuity is required even in the event of standard power failures.

Category Specification
Brand Ajax
Model AJ-NVR108-DC-B
Channels 8
Compatible cameras ONVIF / RTSP
Maximum resolution Until 4K (25/30 FPS)
Compression H.265 / H.264
Total bandwidth Up to 100Mbps
Recording method Continuous, by schedule or motion detection
Storage 1 × HDD 3.5” SATA up to 16 TB (not included)
Remote access App Ajax
Updates OTA (Over-the-air)
Feeding DC 12V option And (depending on installation)
Communication RJ45 Ethernet
Construction Fanless design
Protections Anti-tamper switch (tamper)
Working temperature 0 ºC ~ 40 ºC
Dimensions 200 × 200 × 45 mm
Weight 700 g
Color Black
More Information
EAN 4823114071171
Hight 0.230
Length 0.180
Width 0.060
SECURITY - SYSTEM IP
SEGURIDAD - SERIE 8Mpx
Included Power supply
Event notifier No
No. CCTV Recorder Inputs 8 IP
Audio in ports 1
Usar stock disponible No
Product Brand AJAX
