Ajax Jeweller Hub 2 Black Alarm Central Station

SKU
AJ-HUB2-4G-B
Brands: AJAX
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€346.97 Tax included
AJAX

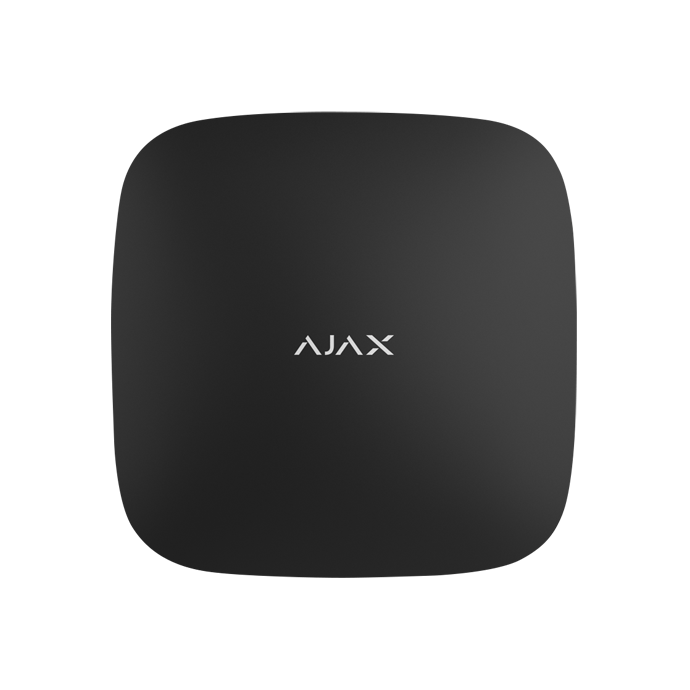

Professional Alarm Center Grade 2 Ajax Black AJ-HUB2-4G-B

This control panel is a complement to the Ajax alarm system. It is an alarm center for professional installations with wireless connection.

You can connect the control panel through the Ethernet port or/and Dual SIM 4G. Which makes it a great advantage when accessing remotely, since we can connect through the AJAX PRO PC software. It also allows connection via mobile. With what we can configure the system in a very simple way, manage users, their permissions, etc. In addition, the use of the cloud is compatible with dynamic IP without the need to open ports.

 The link with the detectors and accessories is done by radio frequency. It uses the Jeweler 868MHz protocol. This system has obtained Grade 2 certification.

The control panel allows the connection of up to 100 wireless zones and divide them into up to 9 different groups, with differentiation of actions such as arming, disarming, partial arming.

The control panel comes with AC 110-250 V power input, but also with a rechargeable backup battery with a duration of up to 16 hours, in case of power loss.

From the mobile application you can verify the video flow, adding up to 25 IP cameras or video recorder channels.



Box contents:

  • Control Panel
  • Power cord
  • Ethernet cable
  • Instructions for use



Technical Specifications of the Professional Alarm Center Grade 2 Ajax Black AJ-HUB2-4G-B

Brand AJAX
RF frequency 868 MHz. Jeweller and Wings radio protocol
Internal security Tamper-resistant opening
Internal siren No
Communication Ethernet / Dual SIM 4G (LTE)
Maximum devices 100
Video integration Up to 25 IP cameras or video recorder channels
Number or users Up to 50
Connection with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Housing material ABS plastic
Power AC 110~250 V, 50/60 Hz
Backup battery Duration up to 16 hours
Temp. operation +5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (D) mm
More Information
SystemJeweller
SERIEHUB
ColorBlack
AutomationCentral
Product BrandAJAX
