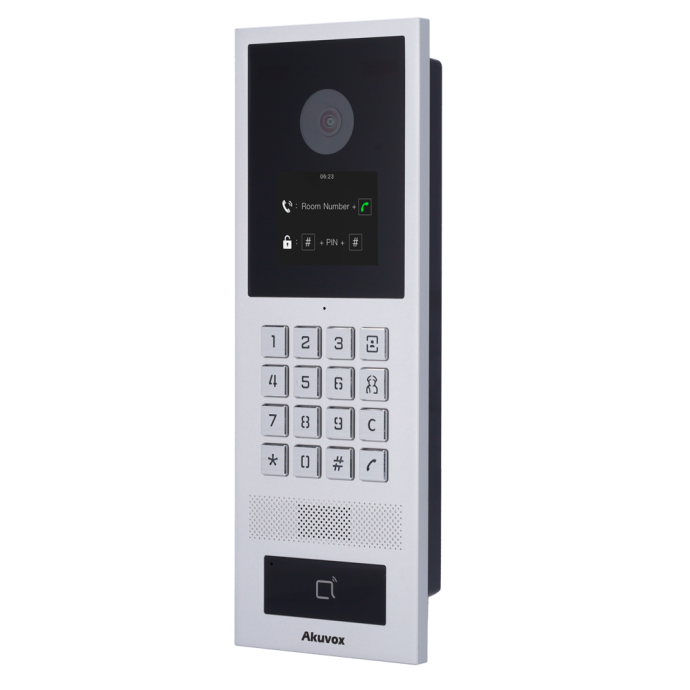

Akuvox IP2Mpx POE+ Video Intercom Panel with EM/M Card Reader, NFC, PIN

SKU
AK-S532
Brands: Akuvox
€355.74 Tax included
Free shipping
(Iberian Peninsula)
Akuvox
Availability: On request
1 to 7 days

Akuvox IP Board with 2Mpx Camera and Access Control

Looking for a video door phone that offers security, cutting-edge technology and ease of use? The AK-S532 is the perfect solution. Equipped with a 2-megapixel camera and HDR technology, it provides sharp and detailed images, even in low light conditions, thanks to its integrated infrared illumination. 2.8" TFT color display.

This device is ideal for apartments, being able to be installed on surface or embedded (with additional support).

This device not only stands out for its image quality, but also for its versatility in access control. It allows doors to be opened using EM/MF RFID cards , NFC, BLE and PIN codes, offering multiple options to adapt to the needs of each user. In addition, its ability to manage up to 50,000 users makes it an ideal choice for neighborhood communities or office buildings.

The AK-S532 is designed to withstand the most demanding conditions. Its aluminum alloy housing is IK08 vandal-resistant and IP66 dust and waterproof, ensuring a long service life even in harsh outdoor environments.

Connectivity is another of its strengths. Compatible with PoE+ and capable of integration into local networks or through the cloud, it enables efficient remote management via the SmartPlus application or through a web browser. In addition, its compatibility with the standard SIP protocol facilitates its integration into existing communication systems.

Technical Specifications of the Akuvox IP Panel with 2MP Camera and Access Control

Brand Akuvox
Model S532
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC, BLE and PIN, with records
Capacity Contacts: 10.000
RFID users: 50.000 cards/passwords
Screen 2.8" Color TFT
Outputs 2 relay for main locks (12V/500mA), Wiegand OUT, RS485 and magnetic loop
Inputs 4 pushbutton and Wiegand IN inputs
Advanced access functions Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Image sensor 1/2.8" 2 Megapixel CMOS with infrared sensor and light sensor
HDR technology
Viewing angle 130° (H) / 90° (V)
Camera resolution 1920x1080 - 30fps / CIF, VGA, 4CIF, 720p, 1080p
Video encoding H.264
Audio Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Automatic voice detection
Audio format SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.722
DTMF (RFC2833), SIP Info
Network interface Ethernet 10/100 BaseT / RS485 / RTSP
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Aluminium alloy
Degree of protection IP66 y IK08
Temp. operation -40º C ~ +60º C
Dimensions 310 (H) x 106 (W) x 38 (D) mm
Power DC 12 V / 2000 mA máx. / PoE+ IEEE802.3at
Weight 1500 g
More Information
Hight0.000
Length0.000
Width0.000
ACCESOS - SISTEMAIP
ACCESOS - SERIEAccessories
ColorSilver
Color Portero/VideoporteroColor
TypeEntrance panel
Product BrandAkuvox
Write Your Own Review
You're reviewing:Akuvox IP2Mpx POE+ Video Intercom Panel with EM/M Card Reader, NFC, PIN
Your Rating
File Label Size Download
pdf Ficha Técnica Placa de Videoportero IP2Mpx POE+ Lector de Tarjetas EM/M, NFC, PIN de Akuvox 474.1 KB Download
