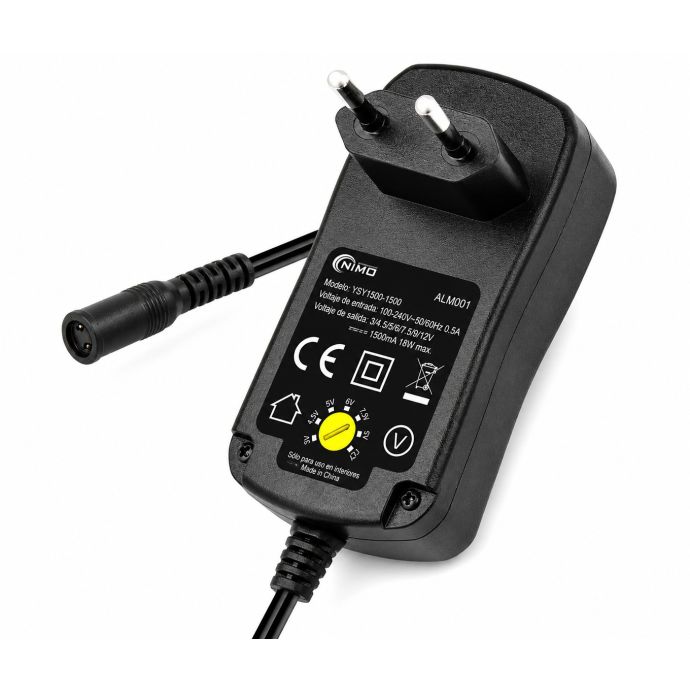

Nimo Manual Adjustable Electronic Power Supply 3-12V DC 1500mA 18W

SKU
ALM001
Brands: NIMO
€11.28
Tax included
% Discount for professionals
NIMO
Availability: In stock
24/48 Hours

Nimo ALM001 Manual Adjustable Electronic Power Supply

The Nimo ALM001 is a universal adjustable electronic power supply designed to replace faulty adapters or power a variety of small electronic devices with a single solution. It converts AC mains power into regulated DC voltage, making it a practical option when different devices require different supply voltages.

It allows manual selection of 3V, 4.5V, 5V, 6V, 7.5V, 9V or 12V DC, with a maximum current of 1500mA (1.5A) and up to 18W at 12V DC. Its switching power supply design includes short-circuit and overvoltage protection with automatic recovery.

Its 6 interchangeable connectors make it suitable for routers, radios, cameras, scales, toys, LED strips, musical keyboards and other compatible devices. It is particularly useful for installers and technical services working with equipment that requires different voltages.

The ALM001 is especially suitable as a replacement power supply for a faulty adapter, although it can also be used in new installations when voltage, current consumption, connector and polarity are compatible. If the project specifically requires 12V DC and a higher current rating, a 12V DC 2A power supply may be a more suitable option. Always check electrical compatibility before connecting the device.

Reference: ALM001

-
+

Extended information about Nimo ALM001 Manual Adjustable Electronic Power Supply 3-12V DC 1500mA 18W

Practical applications of the Nimo ALM001 Manual Adjustable Electronic Power Supply 3-12V DC 1500mA 18W

Example 1. Replacing a faulty power supply:

The Nimo ALM001 Manual Adjustable Electronic Power Supply 3-12V DC 1500mA 18W can be used to replace damaged adapters on devices operating at 3V, 4.5V, 5V, 6V, 7.5V, 9V or 12V DC, provided that their current consumption does not exceed 1500mA. The installer can manually select the required output voltage using the rotary selector and choose the most suitable connector from the six interchangeable output plugs supplied. It is suitable for compatible routers, radios, cameras, LED lighting, toys, scales, musical keyboards and other low-voltage electronic equipment. Its switching power supply design also incorporates short-circuit and overvoltage protection with automatic recovery.

Example 2. Universal power supply for workshops, maintenance and test benches:

In technical workshops, maintenance environments and telecom installations, the Nimo ALM001 adjustable power supply makes it possible to work with different low-voltage devices using a single multivoltage adapter. Its seven selectable output voltages help reduce the need to keep several dedicated power supplies for testing, troubleshooting or temporary replacement tasks. With a maximum output current of 1500mA and up to 18W at 12V DC, it covers a wide range of small electronic devices. Its regulated switching design is especially practical when versatility and stable output are required, provided that voltage, current, connector and polarity are checked before connection.

Package contents of the Nimo Manual Adjustable Electronic Power Supply

  • 1 x Nimo ALM001 manual adjustable electronic power supply.
  • 6 x interchangeable output connectors: 2.35 x 0.70mm, 3.5 x 1.35mm, 4.0 x 1.7mm, 5.0 x 2.1mm, 5.5 x 2.5mm and 3.5mm mono jack.
  • The technical documentation provided does not specify any additional accessories, so no other package contents are assumed.

Technical specifications Nimo Manual Adjustable Electronic Power Supply

Brand Nimo
Reference ALM001
Type Manual adjustable electronic power supply / switching power supply
Nominal input voltage 110 to 240V AC
Minimum / maximum input range 90 to 264V AC
Nominal frequency 50 / 60Hz
Inrush current 65A at 230V AC
Leakage current <0.25mA at 240V AC
Efficiency 80% at 25%, 50%, 75% and 100% of maximum current
Selectable output voltages 3V / 4.5V / 5V / 6V / 7.5V / 9V / 12V DC
Voltage selection Manual rotary selector
Output tolerance 5%
Maximum output current 1500mA / 1.5A
Maximum power 18W at 12V DC
Ripple and noise 200mVpp
Setup time 1.5s max.
Rise time 40ms
Hold-up time 15ms at 115V AC and maximum load
Line regulation ±3%
Load regulation ±5%
Short-circuit protection Yes, with automatic recovery
Overvoltage protection Yes, with automatic cut-off and recovery
Operating temperature -20°C to 50°C
Storage temperature -40°C to 85°C
Operating relative humidity 20% to 95% RH, non-condensing
Storage relative humidity 10% to 95% RH, non-condensing
Input connector EU plug integrated into the housing
Output connectors 6 interchangeable plugs
Connector sizes 2.35 x 0.70mm, 3.5 x 1.35mm, 4.0 x 1.7mm, 5.0 x 2.1mm, 5.5 x 2.5mm and 3.5mm mono jack
Output cable length 100 ±5cm
Dimensions 92.2 x 46.2 x 35.8mm
Drop test 1.0m, once on each side, according to the manufacturer’s specified procedure
EMC emissions EN55022 / FCC Part 15 / EN61000-3-2 / EN61000-3-3
EMC immunity EN61000-4-2 / 4-3 / 4-4 / 4-5 / 4-6 / 4-8 / 4-11
More Information
More Information
EAN 8436300836803
Hight 0.090
Length 0.090
Width 0.500
DTT System DTT Power Supply
SERIES DTT 12Vdc
Color Black
Power supply Other
Feed Power 12 Vc
Current (mA) 1500
Usar stock disponible No
Product Brand NIMO
Reviews
Write Your Own Review
You're reviewing:Nimo Manual Adjustable Electronic Power Supply 3-12V DC 1500mA 18W
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Alimentador Electrónico Regulable Manual 3-12Vc 1500mA 18W de Nimo 610.2 KB Download
