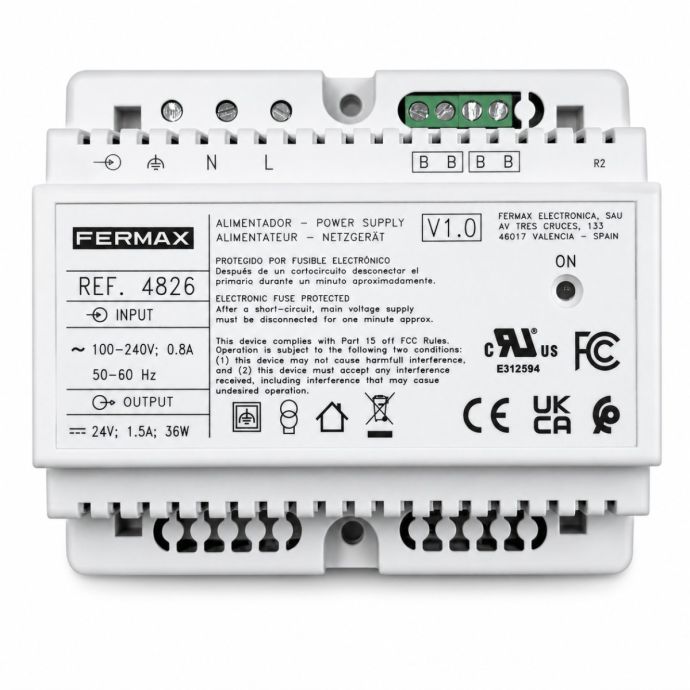

Fermax DIN6 + Filter 24Vdc 1.5A Power Supply

SKU
FER4826
Brands: Fermax
€73.89
Tax included
Availability: On request
1 to 7 days

DIN6 + Filter 24Vdc 1.5A Power Supply for Fermax DUOX PLUS Systems

The Fermax DIN6 + Filter 24Vdc 1.5A Power Supply is designed to provide both power and data transmission for small DUOX PLUS video door entry and door entry installations. By combining the power supply and system filter into a single unit, it reduces the number of required components, simplifies wiring, and ensures reliable communication throughout the installation.

This power supply delivers a stable 24 Vdc, 1.5 A (36 W) output and features POWER BUS connections that carry both power and data over the same bus line. It is particularly well suited for installers working on single-family and two-family residential projects, where quick installation, system reliability, and efficient use of space are essential. It is mainly intended for new DUOX PLUS installations, although it is also an ideal replacement unit for existing systems.

Its practical DIN-6 rail format allows easy installation inside electrical distribution panels or direct wall mounting when required. The unit also includes electronic protection against overloads and short circuits, an LED status indicator, and high energy efficiency, making it a reliable and durable solution for residential digital video intercom systems.

If you are building a DUOX PLUS installation, you can complement your project with other video intercom accessories

Reference: FER4826

-
+

Extended information about the Fermax DIN6 + Filter 24Vdc 1.5A Power Supply

Practical applications of the Fermax DIN6 + Filter 24Vdc 1.5A Power Supply

Example 1. Power and Call Management over the Same Two-Wire Bus:

The Fermax 4826 power supply instantly delivers the required 24 Vdc power while simultaneously transmitting the call data over a single two-wire bus to the indoor monitor.

Example 2. Installation in a two-family home with a DIN electrical panel:

In a two-family DUOX PLUS installation, the DIN-6 format allows the unit to be mounted neatly inside the electrical panel. This makes wiring easier, saves space, and provides a professional power and filtering solution for small residential video door entry systems.

Package contents of the Fermax DIN6 + Filter 24Vdc 1.5A Power Supply

  • 1 Fermax DIN6 + Filter 24Vdc 1.5A Power Supply, Ref. 4826.
  • Set of protective covers for connection terminals.
  • Manufacturer installation documentation.

Technical specifications Fermax DIN6 + Filter 24Vdc 1.5A Power Supply

Feature Specification
Manufacturer reference 4826
SKU FER4826
Product code F04826
EAN 8424299048260
Compatible technology DUOX PLUS
Main function Power supply and system filter
Recommended installation Small single-family and two-family audio/video DUOX PLUS installations
Input voltage 110-240 Vac
Input frequency 50-60 Hz
Output voltage 24 Vdc ±10%
Output current 1.5 A
Maximum output power 36 W
Efficiency at maximum load ≥87% at 230 Vac input
BUS connections POWER BUS: voltage and data
PREV connections Not available
Input protection NTC fuse and 2.5 A fuse
Output protection Electronic limitation against overload and short circuit
Status indicator 1 LED; flashing ON LED indicates short circuit
Material VO self-extinguishing material
Mounting format DIN-6 rail or direct wall mounting
Dimensions 90 x 105 x 60 mm
Operating temperature -5 ºC to +45 ºC
Maximum humidity 95%, non-condensing
Packaged product weight 0.3688 kg
Package dimensions 6.5 x 11.3 x 9.6 cm
