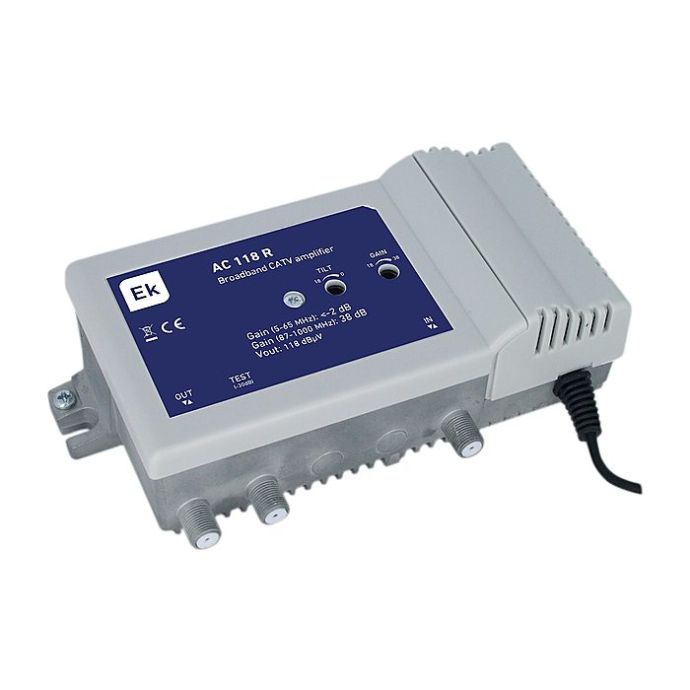

EK CATV Line Amplifier 1 Input 38dB 1 Output 118 dBuV Class A
EK AC 118 R 38dB Class A CATV Line Amplifier
The EK CATV Line Amplifier 1 Input 38dB 1 Output 118 dBuV Class A is a professional solution for boosting TV signal levels in coaxial networks where the signal has weakened due to long cable runs, splitters, or distribution across large homes and buildings.
This amplifier operates in the 87 to 1000 MHz forward path with 38 dB gain, a maximum output level of 118 dBuV, and a passive 5 to 65 MHz return path. It is suitable for CATV/DTT coaxial installations and is especially useful for installers who need to recover signal margin without replacing the existing network. You can place it within the line amplifiers category.
The unit includes independent gain and tilt adjustment, TEST output, Class A shielding, zamak housing with heat dissipation, and an operating LED indicator. It is intended for new installations, extensions, or signal-level correction in existing coaxial networks; it is not listed as a specific spare part for a closed system. Please note that this amplifier does not amplify satellite (SAT) signals, as these are transmitted in the 950–2150 MHz frequency range, which is outside the amplifier's operating bandwidth of 87–1000 MHz.
The AC 118 R is also compatible with the Ekoax system for internet distribution over coaxial cable, making it suitable for projects where the same coaxial infrastructure is used for both TV and data services. See also the internet over coaxial cable solutions.
Reference: EK102006
