Autonomous Access Control EM Card and PIN AC103 from Safire

SKU
SF-AC103
Brands: Safire
Availability: On request
1 to 7 days
€48.79 Tax included
-
+

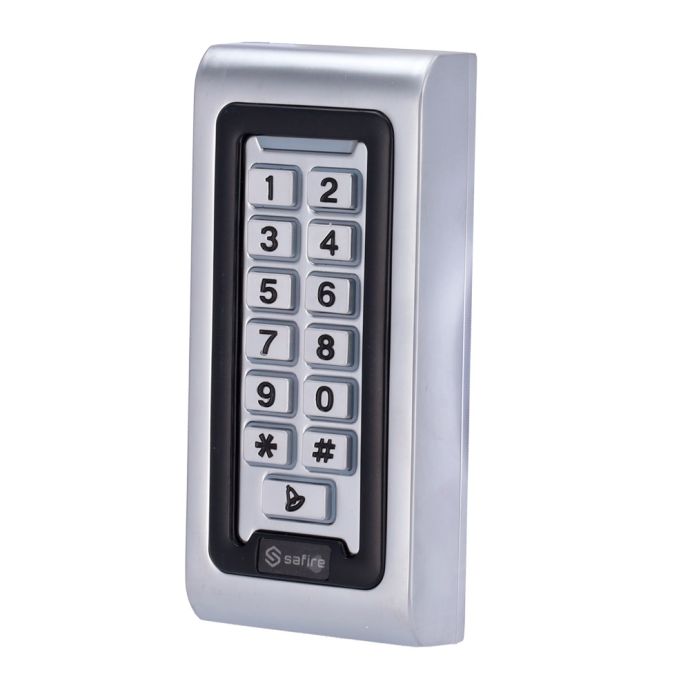

Autonomous Access Control EM Card and PIN AC103 from Safire

Outdoor access control with access by 125KHz EM card or by PIN through the keyboard, it also works as a combination of both. This reader is very small and discreet, suitable for frames, it has a metal casing, prepared to be installed outdoors for access to buildings.

It has a signaling LED and NO/NC relay output controller, push button and buzzer. It has a storage capacity of up to 2000 cards/passwords.

Its Wiegang 26 communication is a communication protocol created by the HID company, it is a unidirectional communication that allows data transmission between a reader (cards) and a controller (access control). This technology is very similar to that used with credit cards, a magnetic strip stores the data that is read by the reader.

Package content:

  • Safire Standalone Access Control Keypad
  • Installation material
  • Instructions for use

Technical Specifications of the Safire AC103 EM Card and PIN Autonomous Access Control

Brand Safire
Model SF-AC103
Capacity Up to 2.000 cards/passwords
Identification modes Card, PIN and combinations
RFID proximity card EM 125 kHz
Outputs NO/NC relay, push button and buzzer
Communication Wiegand 26
Power DC 12 V
Consumption in idle mode ≤ 30 mA
Degree of protection EXTERIOR IP68
Temp. operation -40º C ~ +60º C
Dimensions 56 (W) x 120 (H) x 20 (D) mm
Weight 510 g
More Information
EAN 8435325479941
System Accessories
SERIE Autónomo
Color Silver
Installation Outdoor
Identification EM Card/Keychain
Product Brand Safire
Write Your Own Review
You're reviewing:Autonomous Access Control EM Card and PIN AC103 from Safire
Your Rating
File Label Size Download
pdf Ficha Técnica Control de Acceso Autónomo Tarjeta EM y PIN AC103 de Safire 42.3 KB Download
