Balun active receiver for 400 meters range

SKU

BA615A-RX

Brands: TDTprofesional

Availability: On request

Delivery: 1 to 7 days

€37.57 Tax included

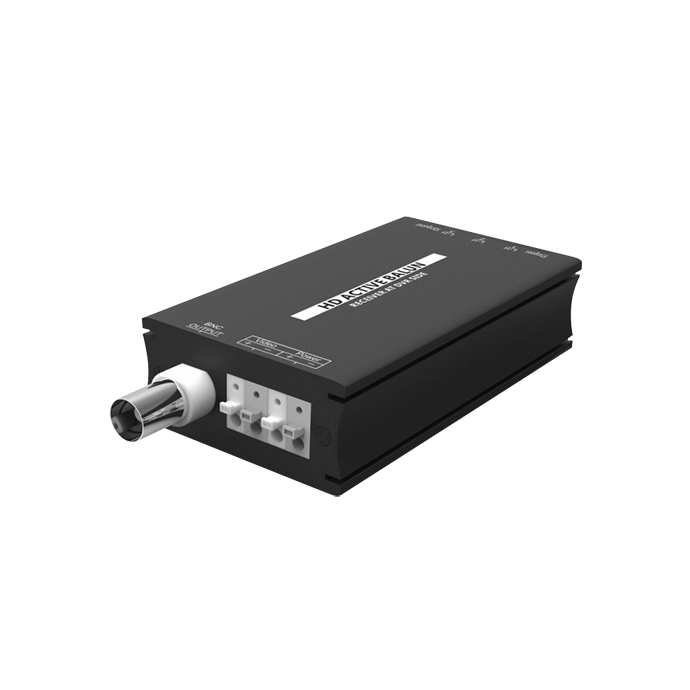

Balun BNC Female Active Transceiver BA615A-RX

Balun active receiver of 1 video channel for CCTV surveillance systems. 4-pin UTP input and BNC Female output.

To receive HD signals: HDCVI, HDTVI and AHD with a maximum range of between 400 ~ 700 meters and maximum resolution Full HD 1080p, using UTP category 5e or 6 data cable for transmission.

Compatible with BA615A-TX transmitter.

Details

Balun active receiver with a range of 400 meters, compatible with the BA615A-TX transmitter.

What are the main features of the BA615A-RX receiver balun?

Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD
1 channel
Active
Power 12VVDC
BNC/UTP 4 pins
Video
Maximum range 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
1 receiver
Compatible with BA615A-TX

What technical specifications does the BA615A-RX receiver balun have?

Number of channels	1 channel
Power supply	12VDC / 1A (Passive)
Video Input/Output	BNC (male)
Transmission distance	400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
Twisted pair connector	Connector with 4 pins
Crosstalk	60 dB
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5e/6
