Box x8 Offset Satellite Dish 80cm Steel Engel

SKU

ENGAN7036Kx8

Brands: Engel Axil

Availability: In stock

Delivery: 24/48 Hours

€260.67 Tax included

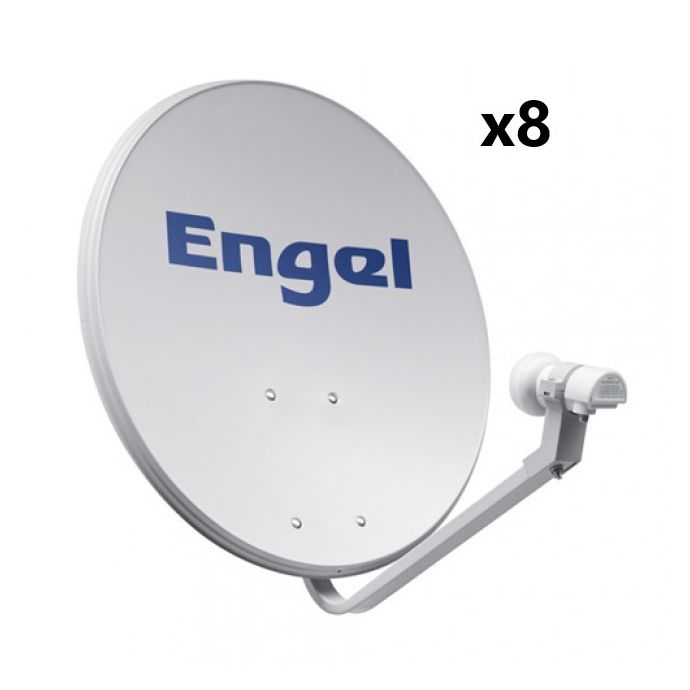

Engel AN7036K - Kit x8 Offset Steel Satellite Dish 80cm

Engel 80cm offset steel satellite dishes supplied in a box of 8 units. High gain and performance 12GHz antennas, ideal for reception of the Astra 19E, Hispasat 30W, Hotbird 13E or Atlantic Bird 5W satellites.

Antennas made of materials with high resistance to corrosion for extreme environments and temperatures: electro-galvanized steel disc with polyester paint, robust polypropylene support with galvanized clamp.

Claw for mast/support ∅ 30-55mm. Satellite dishes compatible with all standard ∅ 40mm LNBs.

This kit does NOT include the LNB converters.

Details

Kit 8x 80cm Offset Steel Satellite dishes with all accessories

What are the main features of the Engel AN7036K Kit?

Fixed offset antennas diameter 80 cm
Ideal for individual reception of TV-DIGITAL
High gain and performance at 12GHz
Simple installation and adaptable to any location
Long-lasting materials in extreme environments and temperatures (electrogalvanized steel disc with polyester paint)
Very robust polypropylene standard support with galvanized sheet clamp
Antenna elevation indication
Possibility of adaptation to polar mounts (cod. AC7215)

What technical specifications does the antenna of the Engel AN7036K Kit have?

Metallic support
Effect diameter: 80 cm
Type: Offset
Efficiency:> 60%
G (11.2 GHz): 37.22 dB
G (12.2 GHz): 37.45 dB
Beam width: <3
Cross polarization: <-24 dB
F / D ratio: 0.58
LNB diameter: 40
Mast Claw: 30-55mm
Weight: 3.47 Kg
Wind resistance: 180 Km / h
Load v. 130 Km / h: 28 Kg

More Information

More Information
EAN	8413173401727
System	Satellite
SERIE	Steel
Color	White
Size	80 cm to 95 cm
Type	Offset
Orientation	Manual
Material	Steel
Mast max. diameter	60 mm
LNB included	No
Product Brand	Engel Axil
