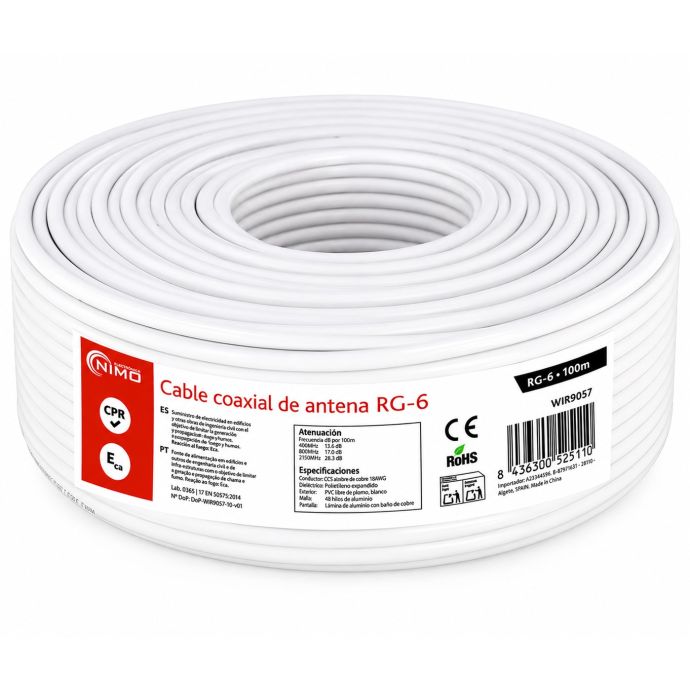

Nimo Indoor White CCS CPR ECA Coaxial Antenna Cable on 100 m Reel

SKU
WIR9057
Brands: NIMO
€21.42
Tax included
% Discount for professionals
NIMO
Availability: In stock
24/48 Hours

LSZH CPR ECA Coaxial Cable for Antenna Installations by Nimo

The Nimo WIR9057 coaxial cable has been designed to provide a practical, reliable and cost-effective solution for terrestrial TV, satellite and RF signal distribution systems. Supplied in a 100-metre reel, it is ideal for residential installations, small projects and refurbishment works where a dependable cable with excellent value for money is required.

It features a 1 mm CCS (Copper Clad Steel) conductor, expanded polyethylene dielectric and 75 Ω impedance, ensuring proper signal transmission for DTT and satellite TV applications. In addition, it carries a CPR ECA classification, meeting the basic fire reaction requirements applicable to this type of indoor cabling.

Its LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing the emission of smoke and harmful gases in the event of fire. The cable also incorporates a 48-wire aluminium braid (16x3x0.12 mm), providing adequate shielding performance for residential installations and signal distribution networks where stable reception is required without increasing installation costs unnecessarily.

The Nimo WIR9057 stands out as one of the best value-for-money coaxial cables available on the market, making it an excellent choice for users looking for an affordable and functional solution for TV and satellite installations. If you are searching for a cost-effective coaxial cable that is easy to install and delivers reliable performance in domestic environments, this is the cable you are looking for.

In summary, the Nimo WIR9057 CPR ECA combines competitive pricing, regulatory compliance, an LSZH jacket and performance suitable for residential applications, making it an excellent option for new installations and cable replacements in TV and satellite systems where budget is an important consideration. To complete your installation, we recommend exploring our RG6 coaxial cable range and TV antenna installation accessories available at TDT Profesional.

Reference: WIR9057

-
+

Extended Information about Nimo 100 m Indoor White CCS CPR ECA Coaxial Antenna Cable

Practical Applications of the Nimo 100 m Indoor White CCS CPR ECA Coaxial Antenna Cable

Example 1. DTT signal distribution in single-family homes:

The Nimo WIR9057 is ideal for connecting antennas, amplifiers, splitters and wall outlets in residential installations. Its low attenuation characteristics and 75 Ω impedance help maintain signal quality throughout the distribution network, ensuring stable reception of terrestrial television channels.

Example 2. TV distribution systems in apartment buildings and commercial facilities:

Thanks to its CPR ECA classification and LSZH jacket, this coaxial cable is suitable for indoor cable routing in apartment blocks, offices, hotels and communal television systems. The 48-wire aluminum braid provides effective protection against electromagnetic interference, improving signal stability across the entire network.

Package Contents of the Nimo 100 m Indoor White CCS CPR ECA Coaxial Antenna Cable

  • 1 x Nimo WIR9057 RG6 coaxial cable reel.
  • 100 meters of coaxial cable for TV and satellite installations.
  • Protective shrink-wrapped packaging.
  • Meter-marked cable jacket with descending length indication.

Technical Specifications of the Nimo 100 m Indoor White CCS CPR ECA Coaxial Antenna Cable

Part Number WIR9057
Brand Nimo
Cable Type RG6 Coaxial Cable
Application DTT, Satellite and RF Signal Distribution
Length 100 m
Impedance 75 Ω ±3
Center Conductor CCS (Copper Clad Steel)
Conductor Type Solid Bare Conductor
Conductor Diameter 1.0 mm ±10%
Wire Gauge AWG 18
Conductor Resistance 80 Ω/km
Dielectric Material Expanded Polyethylene (PEE)
Dielectric Diameter 4.80 ±0.10 mm
Inner Foil Aluminum + Polyester
Braid Material Aluminum
Braid Construction 48 wires (16x3x0.12 mm)
Braid Coverage 35%
Outer Jacket LSZH (Low Smoke Zero Halogen)
Jacket Color White
Outer Diameter 6.8 ±0.2 mm
Nominal Capacitance 50 nF/km
Velocity Ratio 86%
Minimum Bend Radius 8 x cable diameter
CPR Classification ECA
Standards EN 50581:2010 and EN 50575:2014+A1:2016
Certifications CE, RoHS, CPR
Packaging Format Shrink-Wrapped Reel
Reel Dimensions 265 x 265 x 87 mm
Weight 3.54 kg
Outer Packaging Corrugated Cardboard Box
Units per Carton 5 units



Attenuation Table

Frequency (MHz) Maximum Attenuation (dB/100m)
55 4.9
100 6.4
400 13.5
800 19.0
862 19.8
1000 21.5
1350 25.0
1750 29.0
2150 32.5



More Information
More Information
EAN 8436300525110
Hight 0.150
Length 0.400
Width 0.300
CTI - System RG6
CTI - Serie 100m
Entorno Interior
Color White
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper Clad Steel (CCS)
Material Malla Coaxial Alloy
Usar stock disponible No
Product Brand NIMO
Reviews
Write Your Own Review
You're reviewing:Nimo Indoor White CCS CPR ECA Coaxial Antenna Cable on 100 m Reel
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Cable Coaxial RG6 para antena Interior Blanco CCS CPR ECA en Bobina de 100 m de Nimo 515.8 KB Download
