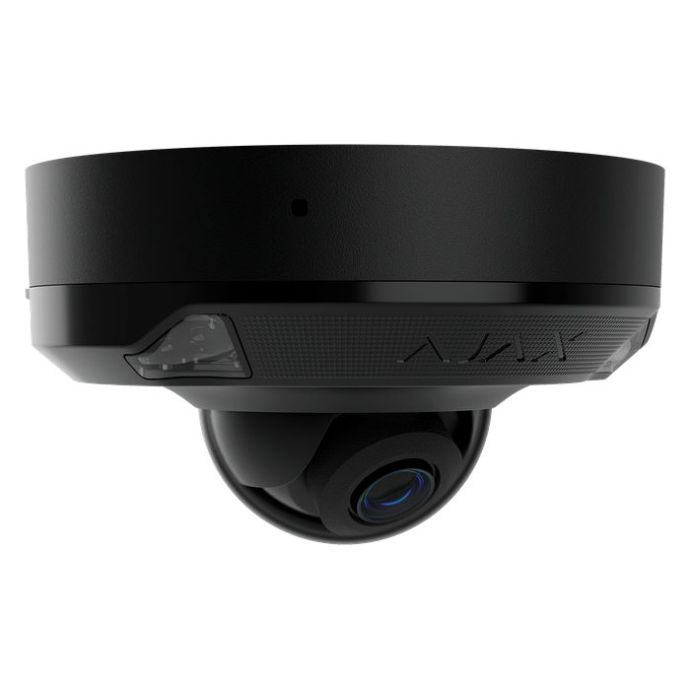

Ajax DomeCam Mini HL 5 MP 4 mm Black IP Dome Camera with Hybrid Light
The Ajax 5MP Fixed 4mm Hybrid Light 15m MicroSD AI PoE Black IP Dome Camera is a compact solution for professional video surveillance with high-definition image quality, intelligent analysis and adaptive night vision. Its black finish allows discreet integration on facades, corridors, entrances and areas where a sober appearance is required.
It works as a wired IP camera within the Ajax ecosystem and can also be integrated into compatible video surveillance systems via ONVIF/RTSP. It is designed for new CCTV IP installations or system expansions, especially for installers who need a PoE camera with power and data through a single network cable. It can be combined with Ajax CCTV to build complete camera and recorder systems.
Its fixed 4 mm lens provides an approximate 85º field of view, suitable for focused areas such as corridors, entrances, facades or passage points. The AI classifies people, pets and vehicles, helping to optimise recordings and reduce false alarms caused by wind, insects or irrelevant movement.
The hybrid light combines infrared and white light with a 15 m range, switching automatically according to the scene to record in black and white or in colour as needed. It includes a MicroSD slot up to 256 GB, fast mobile setup via QR code and smooth viewing from the Ajax app. For clean wall or ceiling installations, it can be used with the black junction box for Ajax Bullet, Dome and Turret cameras.
Extended information about Ajax 5MP Fixed 4mm Hybrid Light 15m MicroSD AI PoE Black IP Dome Camera
Practical applications of Ajax 5MP Fixed 4mm Hybrid Light 15m MicroSD AI PoE Black IP Dome Camera
Example 1: Deterrent night surveillance at the exterior access of a commercial warehouse.
An electronics store installs this 5-megapixel camera with a 4 mm lens just above the rear loading dock in a dark alley. At night, the device records discreetly in black and white using invisible infrared illumination. When the built-in artificial intelligence detects an intruder loitering near the door, accurately classifying the subject as a human and filtering out animals, the hybrid technology instantly activates its integrated white light LEDs.
Example 2: Expansion of an Ajax installation with visual verification and AI.
In an existing Ajax installation, this camera adds IP video surveillance and uses intelligent detection as support for the intrusion system. The installer can configure it from a mobile phone by scanning the QR code, link it to the Ajax environment and view video from the same app. The classification of people, pets and vehicles helps filter events and reduce false alarms caused by irrelevant movement.
Package contents of the Ajax 5MP Fixed 4mm Hybrid Light 15m MicroSD AI PoE Black IP Dome Camera
Ajax DomeCam Mini HL camera
Installation template
Installation kit
Quick start guide
Technical specifications Ajax 5MP Fixed 4mm Hybrid Light 15m MicroSD AI PoE Black IP Dome Camera
Feature
Detail
Brand
Ajax
Product type
Wired IP dome camera
Model
DomeCam Mini HL 5 MP / 4 mm
Colour
Black
Maximum resolution
5 MP, up to 2880 x 1620 px
Frame rate
Up to 25 fps
Sensor
Progressive Scan CMOS
Lens
Fixed 4 mm
Viewing angle
Approx. 75º - 85º
Night illumination
Hybrid: infrared and white light
IR range
Up to 15 m
White light range
Up to 15 m
Artificial intelligence
Recognition of people, pets and vehicles
Motion detection
Built-in software with detection zone configuration from Ajax apps
Audio
Built-in digital microphone
Video compression
H.265 / H.264
Ajax protocol
JetSparrow
Video compatibility
ONVIF Profile S and RTSP
Local storage
MicroSD slot up to 256 GB
Network
Ethernet 10/100 Mbps, RJ45
Power supply
PoE 802.3at/af or 8-14 V DC
Power consumption
Up to 8.5 W
Protection rating
IP65, IK08
Use
Indoor and outdoor
Operating temperature
-30 ºC to +60 ºC
Operating humidity
Up to 90%
Dimensions
114 x 114 x 67 mm
Weight
430 g
Configuration
Added to the Ajax system via QR code
Included contents
Camera, installation template, installation kit and quick start guide
