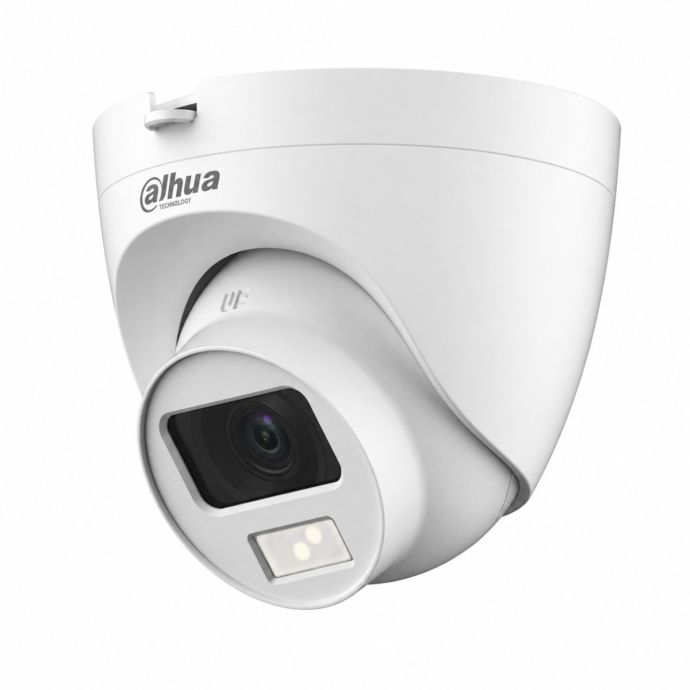

2MP Hybrid Turret Camera with 2.8mm Fixed Lens, 20m Hybrid Light and Built-in Microphone by Dahua

SKU
DAH-HAC-HDW1200CLQP-IL-A-0280B
Brands: Dahua
€23.75
Tax included
Availability: In stock
1 to 7 days

Dahua 2MP Smart Dual Light 4-in-1 Turret Camera with 2.8mm Lens and Built-in Microphone

The Dahua DH-HAC-HDW1200CLQP-IL-A-0280B is a professional surveillance camera designed to deliver reliable Full HD 1080p image quality while maintaining an excellent balance between performance, durability, and cost-effectiveness. Its compact turret design allows for discreet installation in residential, commercial, and industrial environments.

Featuring a 2.8mm fixed lens, this camera offers a wide field of view, making it ideal for monitoring entrances, corridors, parking areas, warehouses, and perimeter zones. The 2MP CMOS sensor captures sharp and detailed images throughout the day and night, ensuring consistent surveillance performance.

One of its standout features is the Smart Dual Light technology, which combines infrared illumination and warm white LED lighting with a range of up to 20 meters. This intelligent hybrid lighting system automatically adapts to different situations, providing discreet black-and-white night vision while enabling full-color recording when activity is detected. The camera also includes a built-in microphone, allowing audio to be recorded alongside video for enhanced security monitoring.

Its 4-in-1 compatibility (HDCVI, HDTVI, AHD, and CVBS) makes it suitable for both new CCTV installations and upgrades of existing analog surveillance systems. Combined with its IP67 weatherproof protection, the camera is capable of operating reliably in demanding outdoor environments exposed to rain, dust, and extreme temperatures.

Reference: DAH-HAC-HDW1200CLQP-IL-A-0280B

-
+

Extended Information about Dahua 2MP Hybrid Turret Camera with 2.8mm Fixed Lens, 20m Hybrid Light and Built-in Microphone

Practical Applications of the Dahua 2MP Hybrid Turret Camera with 2.8mm Fixed Lens, 20m Hybrid Light and Built-in Microphone

Example 1. Residential Entrances and Community Surveillance:

The 2.8mm fixed lens provides a wide horizontal viewing angle of up to 102°, making it ideal for monitoring entrances, gardens, garages, driveways, and communal areas with a single camera. The Smart Dual Light system allows color image capture when movement is detected during nighttime, improving identification capabilities.

Example 2. CCTV Upgrades for Retail Stores and Small Businesses:

The 4-in-1 technology makes it easy to replace older analog cameras without modifying the existing cabling infrastructure. This feature is especially useful for installers looking to modernize surveillance systems while reducing installation time and costs. The integrated microphone adds an extra layer of evidence and event verification.

Technical Specifications of the Dahua 2MP Hybrid Turret Camera with 2.8mm Fixed Lens, 20m Hybrid Light and Built-in Microphone

Camera
Brand Dahua
Model DH-HAC-HDW1200CLQP-IL-A-0280B
Image Sensor 2 MP CMOS
Maximum Resolution 1920 x 1080 pixels (1080p Full HD)
Scanning System Progressive Scan
Electronic Shutter Speed PAL: 1/25 s to 1/100000 s
NTSC: 1/30 s to 1/100000 s
Minimum Illumination 0.01 lux (Color)
0.001 lux (B/W)
0 lux with illuminator enabled
Signal-to-Noise Ratio >65 dB
Lens
Lens Type Fixed Focal Lens
Focal Length 2.8 mm
Maximum Aperture F2.0
Lens Mount M12
Horizontal Field of View 102°
Vertical Field of View 60°
Diagonal Field of View 129°
Minimum Focus Distance 0.5 m
Smart Illumination
Night Vision Technology Smart Dual Light
Infrared Range 20 m
Warm Light Range 20 m
Illuminator Control Automatic
Lighting Modes Smart IR + Warm Light / IR Only / Warm Light Only
Video
Technology HDCVI
Compatibility HDCVI / HDTVI / AHD / CVBS
Video Output 1 x Switchable BNC Output
Supported Resolutions 1080p and 960H
Frame Rate Up to 30 fps at 1080p
Day/Night Mode Auto / Color / Black & White
WDR DWDR
BLC Yes
HLC Yes
Noise Reduction 3D NR
White Balance Automatic
Gain Control Automatic
Privacy Masking Up to 8 Zones
Mirror Function Yes
Audio
Built-in Microphone Yes
Audio Channels 1 Channel
Power
Power Supply 12 VDC ±30%
Maximum Power Consumption 2.6 W
Environmental & Installation
Protection Rating IP67
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity Less than 95%
Housing Material Plastic
Installation Options Wall Mount, Ceiling Mount, Pole Mount
Certifications CE-LVD, CE-EMC, FCC
Dimensions & Weight
Dimensions Ø97.1 x 93.8 mm
Net Weight 0.18 kg
Gross Weight 0.29 kg

More Information
Hight 0.000
Length 0.000
Width 0.000
Usar stock disponible No
Product Brand Dahua
Camera Type Turret
Optic Type Fixed
Color White
Alimentación 12VDC
