Uniview 2MP Fixed 2.8mm Hybrid Light 40m ColorHunter Turret Camera in Black

SKU
UV-UAC-T142-AF28LM-DL-BLACK
Brands: Uniview
Availability: On request
1 to 7 days

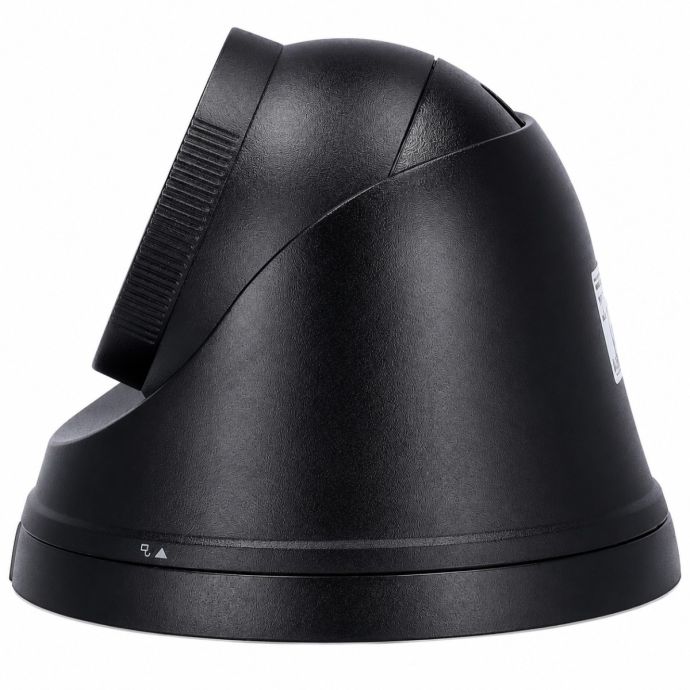

Uniview UAC-T142-AF28LM-DL 2MP ColorHunter Turret Camera with Smart Dual Light

The Uniview UAC-T142-AF28LM-DL turret camera delivers Full HD 2MP resolution and ColorHunter technology to capture colour images even in extremely low ambient light, down to 0.003 lux (F1.6, AGC ON). It is particularly suitable for homes, shops, car parks and outdoor areas where reliable day and night video surveillance is required.

Its Smart Dual Light system combines infrared and white light illumination with a range of up to 40 metres, allowing the lighting to adapt to the scene when used with a compatible Uniview XVR. The fixed 2.8 mm lens also provides a wide 100.9° horizontal field of view, making it ideal for monitoring patios, façades, entrances and commercial premises with a single camera.

Compatible with TVI, AHD, CVI and CVBS systems, the camera transmits video over coaxial cable and is particularly useful for installers upgrading an existing CCTV system or carrying out a new analogue HD video surveillance installation. Its built-in microphone supports audio transmission over coaxial in compatible modes, while the IP67 protection rating provides resistance to water and dust. The installation can be completed with RG59 coaxial cable for CCTV and BNC connectors for CCTV cameras.

Overall, this Uniview ColorHunter turret camera combines colour imaging in very low-light conditions, hybrid illumination up to 40 m, a wide-angle 2.8 mm lens, built-in microphone and multi-format compatibility. It is a versatile solution for upgrading existing coaxial installations or deploying new CCTV projects requiring reliable indoor and outdoor surveillance.

Reference: UV-UAC-T142-AF28LM-DL-BLACK

Extended information about Uniview 2MP Fixed 2.8mm Hybrid Light 40m ColorHunter Black Turret Camera

Practical applications of the Uniview UAC-T142-AF28LM-DL

Example 1. Upgrading an existing coaxial CCTV installation:

In homes, shops, offices or small industrial premises where coaxial cabling is already installed, the UAC-T142-AF28LM-DL allows the surveillance system to be upgraded without necessarily replacing the existing transmission infrastructure. Its compatibility with TVI, AHD, CVI and CVBS gives installers greater flexibility when replacing older cameras or modernising an analogue HD CCTV system.

Example 2. Night surveillance of entrances, patios and car parks:

In areas where ambient lighting drops significantly at night, ColorHunter technology and Smart Dual Light provide a more adaptable surveillance solution. The camera combines very low-light colour imaging with IR and white light illumination up to 40 metres. When connected to a compatible Uniview XVR in TVI mode, it can intelligently switch lighting according to target detection, while the built-in microphone adds useful audio context to recorded events.

Package contents of the UAC-T142-AF28LM-DL

  • 1 × Uniview UAC-T142-AF28LM-DL turret camera

Technical specifications UAC-T142-AF28LM-DL

Specification Details
Model UAC-T142-AF28LM-DL
Camera type 2MP ColorHunter turret analogue camera
Maximum resolution 2 MP
1080P resolution 1920 × 1080
720P resolution 1280 × 720
Image sensor 1/3" CMOS
Minimum illumination 0.003 lux (F1.6, AGC ON)
Illumination with illuminator on 0 lux
Lens Fixed 2.8 mm
Lens mount M12
Horizontal field of view 100.9°
Vertical field of view 56.5°
Diagonal field of view 121.8°
Illuminators 2 × IR + 2 × white light
IR range 40 m
White light range 40 m
Illuminator lifetime ≥ 60,000 hours
Video formats TVI / AHD / CVI / CVBS
Video output BNC
TVI frame rate 1080P@25/30fps; 720P@25/30fps
AHD frame rate 1080P@25/30fps; 720P@25/30fps
CVI frame rate 1080P@25/30fps; 720P@25/30fps
CVBS PAL / NTSC
PAL shutter speed 1/25 s – 1/50000 s
NTSC shutter speed 1/30 s – 1/50000 s
Exposure modes Global / BLC / HLC / DWDR
Day/Night modes Auto / Day / Night
Digital noise reduction 2D / 3D
White balance Auto / Manual
WDR DWDR
Light modes Dual Light / Infrared / White Light
Smart Dual Light Yes, TVI only
Image flip 180° horizontal / 180° vertical
Built-in microphone Yes
Camera audio TVI and CVI at 1080P 25/30fps
Power supply DC 12 V ±25%
Power connector 5.5 mm
Maximum power consumption 3.6 W
Operating temperature -30°C to +60°C
Operating humidity ≤95% RH, non-condensing
Surge protection 4 kV power / 4 kV video output
Protection rating IP67
Material Metal + plastic
Dimensions Ø117.8 × 96.5 mm
Weight 239 g
OSD menu 11 languages
Certifications CE-EMC, FCC, CE-LVD, RoHS, WEEE
More Information
EAN 6937096326124
Hight 0.130
Length 0.130
Width 0.130
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Usar stock disponible No
Product Brand Uniview
Camera Type Turret
Optic Type Fixed
Color Black
Alimentación 12VDC
