Dahua 5MP Hybrid Turret Camera with Motorized 2.7-23.5mm Varifocal Lens, 40m Smart IR and Built-in Microphone

SKU
DAH-HAC-HDW1509TP-Z-A-LED
Brands: Dahua
€120.12
Tax included
Availability: In stock
24/48 Hours

Dahua 5MP Hybrid Turret Camera with Motorized Varifocal Lens, 40m Smart IR and Built-in Microphone

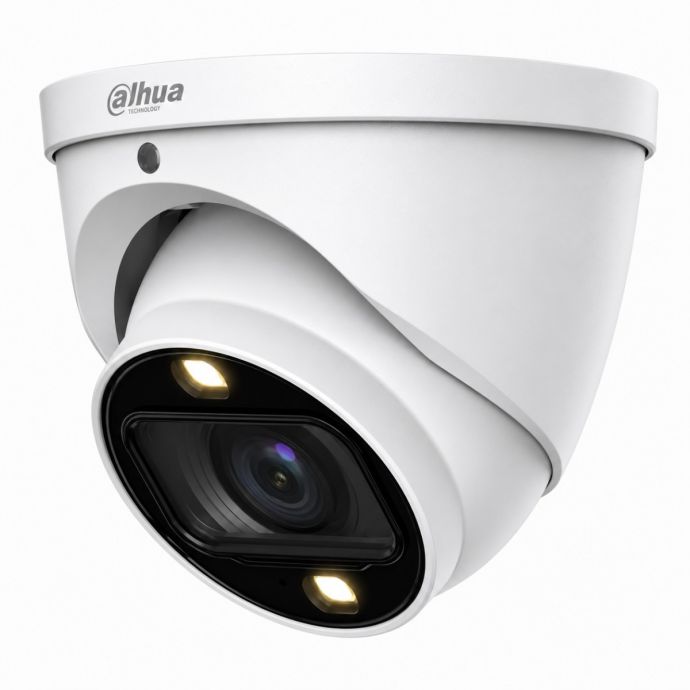

The Dahua HAC-HDW1509TP-Z-A-LED belongs to the renowned Dahua PRO Series and has been designed for professional surveillance projects that demand high image quality, installation flexibility, and reliable performance. Combining 5MP resolution, a motorized varifocal lens, and integrated audio, it provides a complete solution for a wide range of security applications.

This turret camera features a 5-megapixel CMOS sensor capable of delivering detailed images in both daytime and nighttime conditions. Its motorized 2.7-23.5 mm varifocal lens allows remote adjustment of the field of view, making installation easier while providing the flexibility to adapt coverage areas without physically repositioning the camera.

The 4-in-1 hybrid technology supports HDCVI, HDTVI, AHD, and CVBS video formats, making it suitable for both new CCTV installations and upgrades of existing analog systems. Its Smart IR technology with a range of up to 40 meters ensures reliable surveillance in complete darkness. Infrared LEDs emit light that is invisible to the human eye but fully detectable by the camera sensor, providing clear images even in challenging low-light environments. This feature makes the camera particularly suitable for perimeter protection, access control, parking areas, and outdoor surveillance projects.

Additionally, the camera includes a built-in microphone for audio recording and an IP67-rated weatherproof housing for reliable outdoor operation. It is an excellent choice for installers seeking a robust surveillance solution for residential, commercial, and industrial environments where image quality, flexibility, and long-term durability are essential.

Reference: DAH-HAC-HDW1509TP-Z-A-LED

-
+

Extended Information About Dahua 5MP Hybrid Turret Camera with Motorized 2.7-23.5mm Varifocal Lens, 40m Smart IR and Built-in Microphone

Practical Applications of the Dahua 5MP Hybrid Turret Camera with Motorized 2.7-23.5mm Lens, 40m Smart IR and Built-in Microphone

Example 1. Access Control Monitoring in Commercial Facilities:

The 5MP resolution combined with the motorized varifocal lens enables precise monitoring of entrances, reception areas, and customer access points. Installers can remotely adjust the zoom level to optimize facial identification and capture critical details without repositioning the camera.

Example 2. Perimeter Protection for Residential and Industrial Sites:

The combination of 40-meter Smart IR night vision, IP67 protection, and integrated audio makes this camera ideal for monitoring parking lots, warehouses, industrial perimeters, courtyards, and outdoor access points requiring 24/7 surveillance coverage.

Package Contents of the Dahua 5MP Hybrid Turret Camera with Motorized 2.7-23.5mm Lens, 40m Smart IR and Built-in Microphone

  • Dahua HAC-HDW1509TP-Z-A-LED turret camera.
  • Mounting screws and installation hardware.
  • Installation template.
  • Quick installation guide.
  • Manufacturer documentation.

Technical Specifications of the Dahua 5MP Hybrid Turret Camera with Motorized 2.7-23.5mm Lens, 40m Smart IR and Built-in Microphone

Feature Specification
Manufacturer Dahua Technology
Manufacturer Part Number HAC-HDW1509TP-Z-A-LED
SKU DAH-HAC-HDW1509TP-Z-A-LED
Series PRO Series
Camera Type Turret Camera
Technology 4-in-1 Hybrid
Video Compatibility HDCVI, HDTVI, AHD, CVBS
Image Sensor 5 Megapixel CMOS Sensor
Maximum Resolution 5MP (2592 × 1944)
Signal-to-Noise Ratio Greater than 65 dB
Lens Type Motorized Varifocal
Focal Length 2.7 ~ 23.5 mm
Zoom Control Remote Motorized Adjustment
Viewing Angle Variable depending on focal length settings
Minimum Illumination Low-light operation with IR assistance
Night Vision Smart IR
Infrared Range Up to 40 meters
IR Technology Infrared LEDs with automatic Smart IR adjustment
Built-in Microphone Yes
Audio Function Integrated Ambient Audio Recording
OSD Control Via Coaxial Cable
Image Modes Automatic Day/Night Switching
White Balance Automatic / Manual
Backlight Compensation BLC / HLC / DWDR
Noise Reduction 2D NR
Weather Protection IP67 Rated
Installation Environment Indoor and Outdoor
Housing Material Metal and High-Resistance Polycarbonate
Color White
Mounting Options Wall or Ceiling Mount
Power Supply 12 VDC ±30%
Power Consumption Depends on IR operation and motorized zoom usage
Operating Temperature -40°C to +60°C
Operating Humidity Up to 95% RH, non-condensing
Recommended Applications Residential, commercial, office, warehouse, industrial, parking, perimeter, and access control surveillance
Recommended Use New installations and replacement of existing analog CCTV cameras
More Information
Hight 0.140
Length 0.140
Width 0.140
Usar stock disponible No
Product Brand Dahua
Camera Type Turret
Optic Type Motorized Varifocal
Color White
Alimentación 12VDC
