White IP65 Enclosure for Ajax Grade 3 Hub

SKU
AJ-CASE-395-WH
Brands: AJAX
€206.74
Tax included
Availability: On request
1 to 7 days

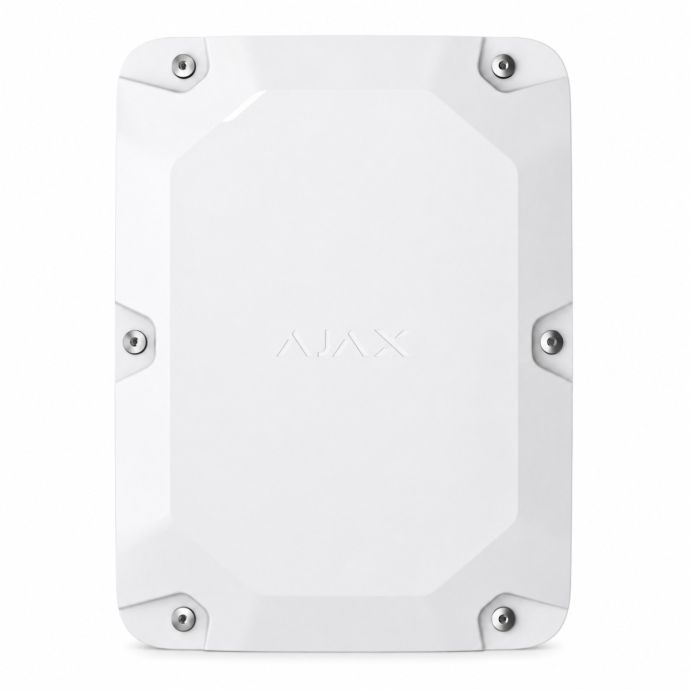

IP66 Enclosure for Ajax Grade 3 Hub – Case E (395) White

The Ajax Case E (395) White IP66 Enclosure for Grade 3 Hubs is specifically designed to protect the core of your Ajax security system when installed outdoors or in demanding industrial environments. Its rugged construction provides outstanding protection against dust, water ingress, impacts, and tampering, making it an ideal solution for professional security installations where maximum reliability is essential.

With IP66 and IK10 certifications, this enclosure offers superior resistance to harsh weather conditions and vandalism. It is fully compatible with Ajax Grade 3 certified hubs, ensuring compliance with high-security standards for industrial facilities, logistics centers, critical infrastructure, and outdoor applications. If you are planning a complete installation, you can explore the full range of Ajax security systems to find the best solution for your project.

The Ajax Case E (395) is suitable for both new installations and retrofit projects where an existing hub needs to be relocated into a protected outdoor enclosure. It features tamper protection against lid opening or enclosure removal, an integrated spirit level for accurate installation, and multiple cable entry points for fast and professional wiring. To complete your system, you can also browse the available Ajax hubs compatible with this enclosure.

Overall, the Ajax Case E (395) is a professional-grade enclosure developed to safeguard Ajax control hubs in outdoor and industrial environments. Its robust construction, certified protection, and compatibility with the Ajax Superior range make it an essential accessory for maintaining the long-term reliability and performance of your security system.

Reference: AJ-CASE-395-WH

-
+

Extended Information about the Ajax White IP65 Enclosure for Grade 3 Hub

Practical Applications of the Ajax White IP65 Enclosure for Grade 3 Hub

Example 1. Technical Room and Loading Dock Corridors in a Logistics Centre:

You need to divide the security system into separate areas to protect the loading docks. Leaving the control panel in its standard plastic enclosure is not an option, as forklift or pallet truck operators could accidentally damage it, while a vandal could spray it with water or attempt to tear it from the wall to disable the alarm system. In addition, the security regulations commonly applied in large commercial and logistics facilities require the alarm control equipment to withstand serious physical attacks.

Example 2. Outdoor Security Systems and Remote Installations:

For outdoor projects, agricultural facilities, utility stations, photovoltaic installations, or remote sites without conventional power infrastructure, the Ajax Case E (395) allows compatible Ajax hubs and backup batteries to be safely installed inside a protected enclosure. This makes it an excellent choice for autonomous Grade 3 security systems requiring maximum durability and reliability.

Package Contents of the Ajax Case E (395)

  • Ajax Case E (395) enclosure
  • 2 × Module Holder Type A
  • 2 × Tamper board connection cables
  • Integrated spirit level
  • Installation kit
  • Quick Start Guide

Technical Specifications of the Ajax Case E (395)

Manufacturer Ajax Systems
Model Case E (395)
SKU AJ-CASE-395-WH
Product Type Weatherproof enclosure for Ajax hubs
Installation Indoor and outdoor
Colour White
Ingress Protection IP66
Impact Resistance IK10
Compliance EN 50131 Grade 3 / PD 6662:2017
Operating Temperature -25°C to +55°C
Operating Humidity Up to 95% RH
Dimensions 395 × 300 × 108 mm
Tamper Protection Integrated tamper alarm for lid opening or enclosure removal
Integrated Spirit Level Yes
Cable Entries Pre-marked side openings for cable routing and fastening
Compatible Hubs Hub BP Jeweller (without casing), Superior Hub Hybrid (4G) (without casing), Superior Hub Hybrid 2 (without casing), Superior MegaHub (without casing)
Compatible Batteries Internal Battery NB 7.2V/95Ah, RB 6.4V/36Ah, NB 7.2V/190Ah, RB 6.4V/78Ah, plus selected third-party batteries with compatible dimensions
Recommended Applications Protection of Ajax control hubs in outdoor installations, industrial facilities, logistics centres, critical infrastructure and Grade 3 security systems
