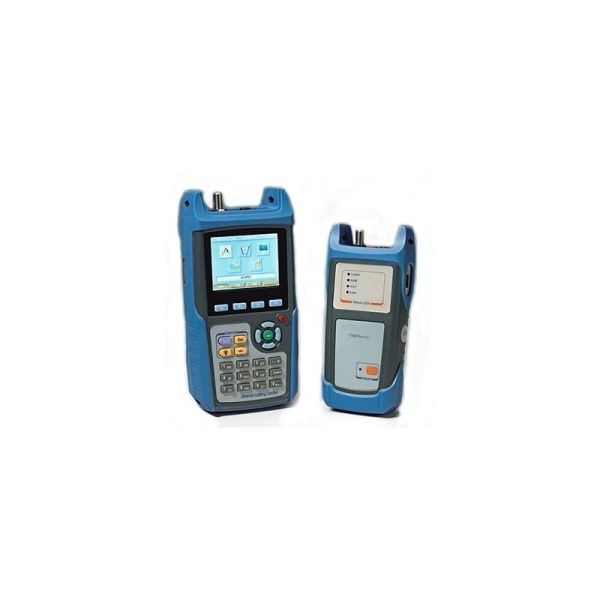

Network Certifier Category 6 by Ampliantena
Cat.6 network certifier for F-type installers
This certifier allows you to measure cable length, identify wiring defects, short circuits, open, inverted and split pairs, as well as distance to short circuit or open circuit, return loss, insertion loss or ping to see continuity.
The AMP509 certifier also allows to measure both cables with shielding or without shielding.
Ampliantena Category 6 AMP509 Network Certifier is a valid certifier for Type F installers.
The AMP509 certifier supports a frequency range of 1MHz to 250MHz in addition to being an approved certifier for type F installers.
What technical characteristics does the AMP509 certifier have?
- Self-test in the Time and Frequency range.
- Self-test time less than 25 seconds
- Supports a frequency range of 1MHz to 250MHz
- 1000BASE-T Ethernet Support
- Type of cables
- With or without shielding
- TIA / EIA-568-B: CAT3, CAT5e and CAT6
- ISO / IEC 11801 and EN50173: Class C, D and E
- Tests supported
- Cable length
- Wire Map: Identifies defects in wiring, short circuits, openings, inversions and split pairs, as well as the distance to the short circuit or open circuit.
- Loss of Return.
- Insertion Loss (Attenuation)
- Skew (propagation delay)
- BER Tes
- TIA / EIA-568-B
- ISO / IEC 11801
- IEEE802.3 10BASE-T, 100BASE-TX, 1000BASE-T
|SERIE||Certificador de red datos y telefonía|
