Terra 44dB Multiband Amplifier with 3 UHF Inputs, 1 FM Input and 1 VHF Input

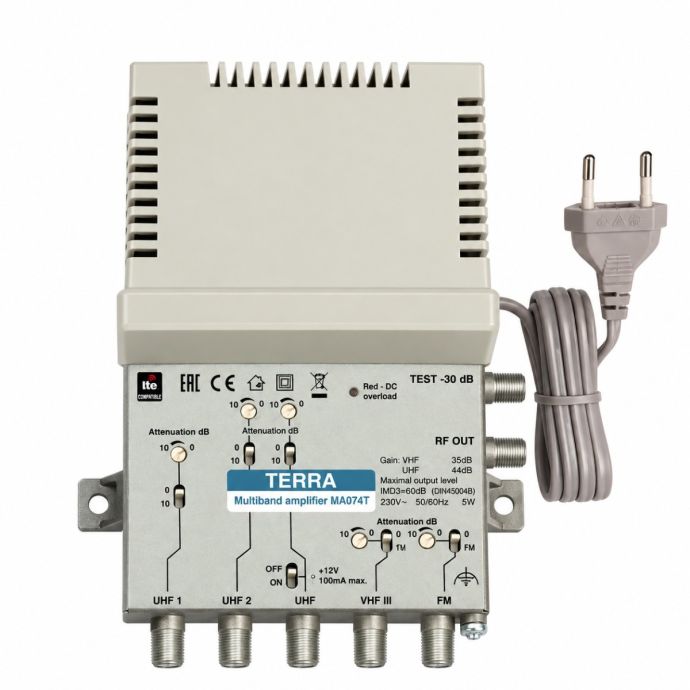

Terra MA074T Multiband Amplifier with 5 Inputs and 44 dB UHF Gain
The Terra MA074T multiband amplifier is designed to combine and amplify terrestrial TV and radio signals in detached houses, rural properties, and small residential buildings. Its high output power enables reliable DTT signal distribution to multiple TV outlets, compensating for signal losses caused by long runs of coaxial cable, splitters, and taps.
This professional amplifier features 5 independent inputs: 3 UHF, 1 VHF III, and 1 FM, delivering 44 dB gain in UHF and 35 dB in VHF/FM. It supports LTE700 UHF TV antennas pointed towards different transmitters, provided that each input's frequency range is respected. Its integrated LTE700 filter reduces interference from mobile networks operating above 694 MHz, helping maintain stable digital terrestrial television reception.
With a maximum output level of 121 dBµV, adjustable gain attenuation of up to 20 dB, and switchable 12 V power for an external preamplifier, the Terra MA074T is particularly suitable for professional installers who need to balance multiple incoming signals before distributing them throughout a building. It operates with UHF terrestrial television, VHF III television, and FM radio systems. It is suitable for both new installations and the replacement of compatible existing amplifiers.
Its die-cast metal housing, DC overload protection, and −30 dB test point simplify installation, signal adjustment, and maintenance. A professional solution for projects requiring multiple antenna inputs and reliable TV signal distribution across numerous outlets, combining versatility, high amplification performance, and straightforward configuration.
Reference: TERMA074T
