Ciao-Mini Comelit Single Family 2-Wire Audio Kit

SKU

COMKCA0061

Brands: Comelit

Availability: In stock

Delivery: 24/48 Hours

€93.75 Tax included

Comelit KCA0061 Single-Family Analogue CIAO-MINI 2-Wire Audio Kit

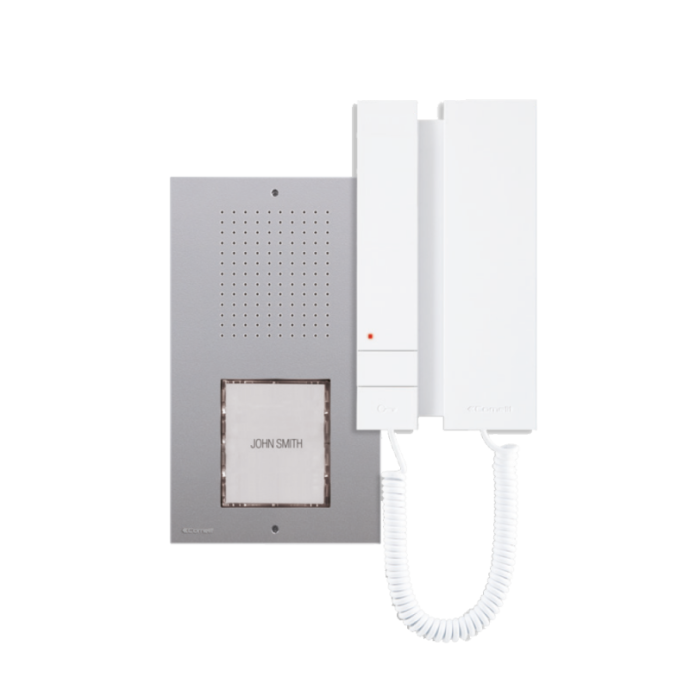

Doorphone kit for 1 single-family home, with 2-wire analogue system. Consisting of Comelit CA0061 CIAO Entrance Panel, Comelit 2812W MINI Telephone, Comelit 1200 12VAC Power Supply and accessories necessary for installation. Kit suitable for residential, commercial or office use.

Mini series telephone with electronic call, volume control and privacy function. It has a lock release button and a free button (normally open contact).

Ciao series outdoor entrance panel for analog 2-wire system. Synthetic polymer front, resistant to atmospheric agents (IP54) and vandalism (IK08). includes 1 call button and support for surface installation.

Details

Comelit Ciao-Mini 2-Wire Analog Audio Kit for Single Family Home

What technical specifications does the Comelit KCA0061 Audio Kit have?

MINI 2 Push Button Telephone, Comelit 2812W
- Pushbuttons: Lock Release, Free Pushbutton
- Height: 190mm
- Depth: 30mm
- Supply voltage: 12VAC
- Minimum absorption (mA): 5
- Maximum current draw (mA): 100
- Consumption during call (mA): 100
- Consumption during communication (mA): 30
- Operating temperature (ºC): 5 ÷ 40
- Product Weight (g): 300
CIAO 1 Push Button Entrance Panel, Comelit CA0061
- Degree of protection: IP54
- Height (mm): 172
- Width (mm): 100
- Depth (mm): 28
- Power supply voltage: 12VAC
- Maximum absorption (W): 15
- Operating temperature (ºC): -25 ÷ 55
- Operating humidity (%): 20 ÷ 95
- Environmental class: IV
- Product Weight (g): 300
230 VAC to 12 VAC transformer, Comelit 1200
- Supply voltage: 230 VAC
- Applicable with DIN guide: Yes
- No. DIN Modules: 3
- Height (mm): 95
- Width (mm): 53
- Depth (mm): 65
- Operating temperature (ºC): -5 ÷ 40
- Current max. supplied (A): 0.9
- Maximum power supplied (W): 15
