City Panel S1 CP101 DUOX PLUS Color Fermax

SKU
FER40708
Brands: Fermax
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€168.47 Tax included
Fermax

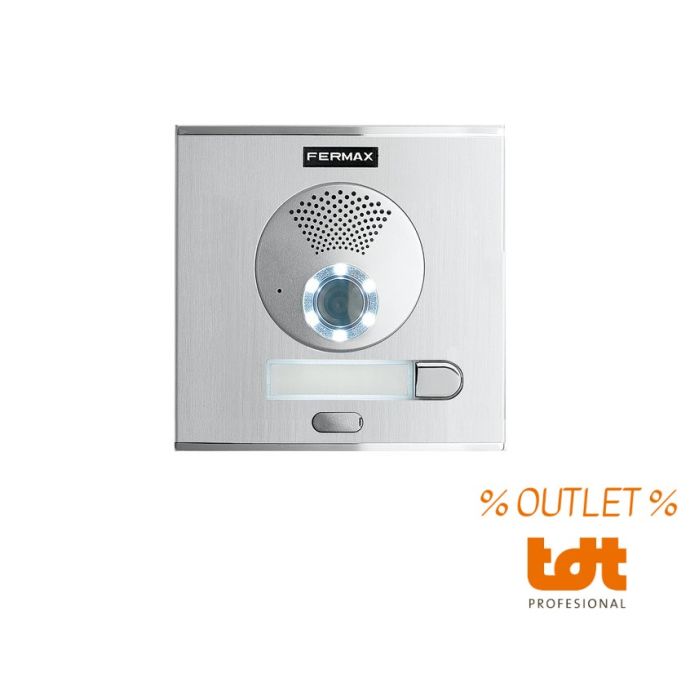

City Entry Panel DUOX PLUS Color 1/L Fermax 40708

Cityline entrance panel for 1 single-family house, compatible with the DUOX PLUS 2-wire non-polarized digital system. It integrates the audio and video functions in the same module.

It incorporates a wide-angle color camera, with integrated lighting and a camera focus regulation system.

High quality robust model made of anodized aluminum, highly resistant to the elements. With chrome-plated zamak button and backlit card holder. Its design maintains the aesthetics of the predecessor City Classic, being fully compatible with each other and for their replacement.

Compatible plate to replace Fermax kits 94411 and 94511.

Cityline DUOX PLUS 1-House Video Panel with built-in Color Camera

What technical specifications does the Fermax 40708 Panel have?

  • Lighting LED consumption: 3.5 mA per card slot
  • Video:
    • Sensor: 1/3" color CMOS
    • Effective pixels>, 340K. (the camera captures 720x480)
    • Minimum external illumination: 0 lux. As it has LEDs, no additional lighting is required
    • S/N >,45dB
    • Frame rate 25 fps
    • Resolution >, 368x288 pixels
    • Video codec: H264 Highline Profile
    • Auto iris
    • Auto BLC
    • Viewing angle 100º horizontal, 80º vertical
    • Fisheye correction
    • Color night vision through white LEDs
    • Pan &, Tilt digital zoom
  • Series 1 Outdoor Panel
    • Panel dimensions: 130x128 mm (width-height)
    • Dimensions flush box: 115x114x45 mm (width-high-deep)
    • Surface box dimensions: 130x128x33 mm (width-high-deep)
  • Power supply: 18-24 Vdc
  • Consumption:
    • Standby: 240 mA
    • Active audio: 560 mA
  • IPK-437
  • Audio power home-street direction: 2W
  • Audio power street-home: 0.15W
  • Volume can be adjusted in both directions
  • Operating temperature: -25 to 70 ºC

More Information
EAN8424299407081
SystemDUOX PLUS
SERIESERIE 1
ColorGray
TypeEntrance panel
Product BrandFermax
