Cityline door kit (4 + N) for 16 homes
16L Analog Doorphone Kit
The Fermax 4871 electronic gateway kit uses an analog 4 + N transmission system (1 wire per housing).
Door-entry kits for buildings include all the necessary equipment for a complete installation and immediate operation: street plate and recess box, DIN 12Vac / 1.5A feeder (ref.4800) and 16 LOFT telephones.
The 4871 Fermax kit is an analog electronic doorphone kit for 16 homes.

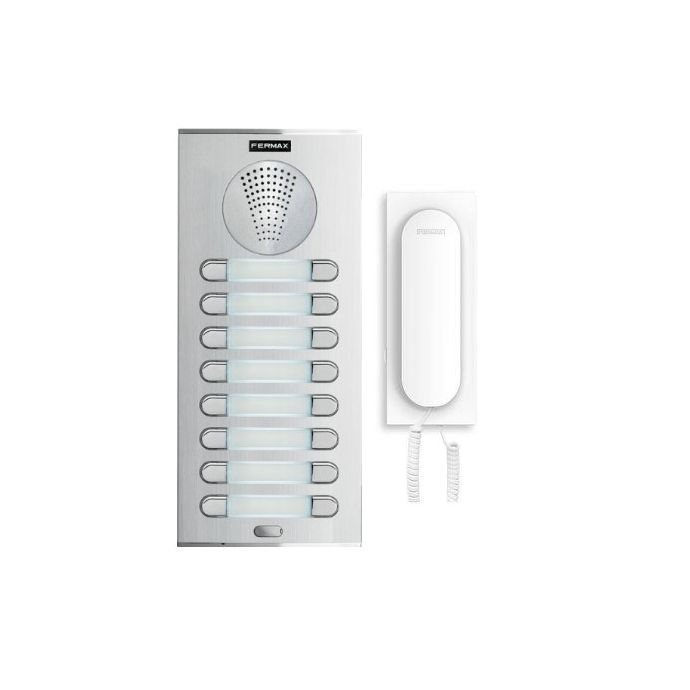

What's in the Fermax 4871 kit?
- CITYLINE 4 + N 4856 plate and 8856 recess box.
- Street plate S6: 130 (H) x294 (V) mm.
- Flushbox S6: 115 (H) x280 (V) x45 (P) mm.
- Telephone LOFT BASIC 4 + N 3393 (16 units).
- 12Vac / 1A power supply. DIN4 4802.
- KIT EXPANSIONS AND ACCESSORIES:
- 2º Access: Request the reference of the plate included in the kit and its recess box + audio changer (ref.8811) + voltage distributor (ref.8809).
- Extension in dwellings without extra power: 3 telephones (ref.3393).
- Recommended door opener: 450N-S door opener (ref.3071). Normal operation and short shield. 12Vac.
What technical features does the 4871 kit have?
- Consumption Leds illumination: 3.5 mA per card holder.
- Series 6 plate.
- Plate dimensions: 130x294 mm (width-high).
- In-box dimensions: 115x280x45 mm (width-high-deep).
- Measures box surface: 130x294x33 mm (width-high-deep).
- Power System:
- Audio: 12 Vac
- Video: 18 Vdc
- at rest: 65 mA.
- call: 600 mA.
- active audio: 100 mA.
- audio + video: 180 mA (camera consumption: 80mA)
- Power audio sense home-street: 2W
- Sound power street-dwelling sense: 0.15W
- Volume adjustable in both directions
- Operating temperature: -10 to 60 ° C
