Coaxial Cable Cu/Cu A++ Eca Indoor PVC White (500m)
Availability:
In stock
SKU:
TEL413801D
Televes
24/48 Hours
Free shipping
(Iberian Peninsula)
€513.96
Tax included

Coaxial Cable SK2000plus Cu/Cu Class A++ Euroclass Eca Indoor PVC White Televes 413801

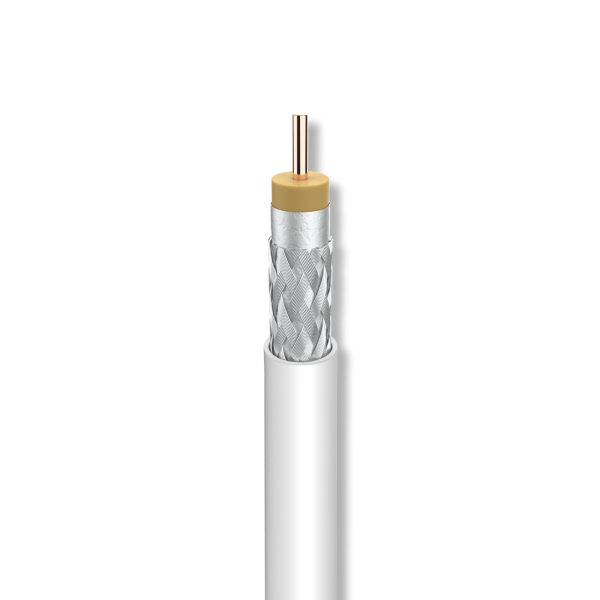

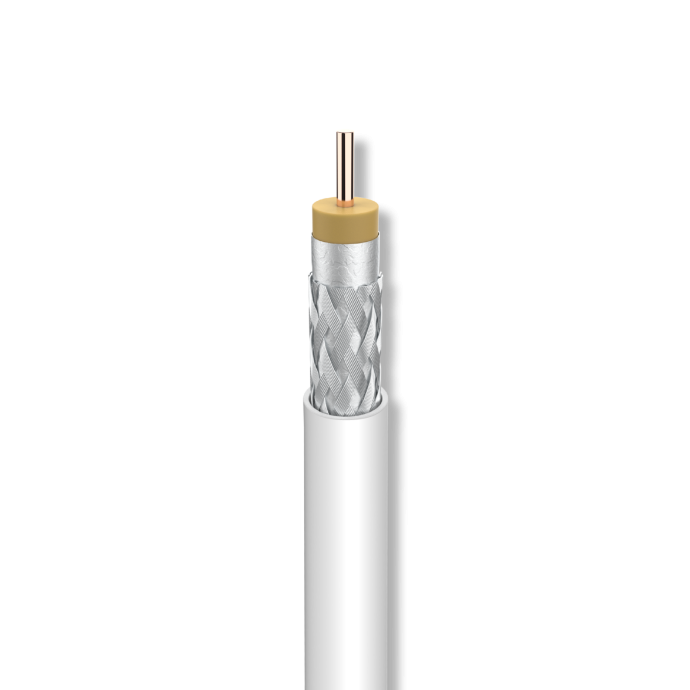

75Ω Coaxial Cable composed of live and mesh of copper (Cu/Cu) and white PVC cover inside. Supplied in a 500 meter wooden coil.
It is characterized by its great immunity against interference thanks to its Class A++ triple shielding (TSH). Recommended cable for routes with high levels of electromagnetic noise. In addition, it has a Euroclass Eca classification of non-propagation of flame in case of fire.
Its 100% copper construction offers an excellent response throughout the TV-SAT frequency band.
Televes
24/48 Hours
Free shipping
(Iberian Peninsula)
Coaxial Cable SK2000plus Cu/Cu Class A++ Euroclass Eca Indoor PVC White (500m)
What are the main characteristics of Televes 413801 Coaxial Cable?
- Copper conductors
- Class A++ shielded
- Eca Euroclass
- White-colour external PVC sheath
- 75 Ohm characteristic impedance
- Available in reels of different lengths
What technical specifications does the Televes 413801 Coaxial Cable have?
Type | SK2000plus | |||
Standard | EN 50117-2-4 | |||
EuroClass | Eca | |||
Class | A++ | |||
Inner conductor | Ø mm | 1,02 | ||
Material | CU | |||
Res. Ohm/Km | <22 | |||
Dielectric | Ø mm | 4,6 | ||
Material | PEE | |||
Overlapped foil | Aluminium + Polyester | |||
Braid | Material | CuSn (98%Cu) | ||
Dimensions (Ncx Nsx Ø) | 24 x 7 x 0.10 | |||
Res. Ohm/Km | <10.5 | |||
Coverage % | 82 | |||
2-nd foil | Yes | |||
Petrol-Jelly | No | |||
Outer sheath | Ø mm | 6,7 | ||
Material | PVC | |||
Minimum bending radius | mm | 33,5 | ||
Screening attenuation @ 1GHz | dB | >105 (135 typ.) | ||
Capacitance | pF/m | 54 | ||
Impedance | Ohm | 75 | ||
Transfer impedance (5-30MHz) | mOhm/m | ≤0,9 | ||
Velocity ratio | % | 84 | ||
Attenuations (dB/m) | ||||
---|---|---|---|---|
Frequency (MHz) | ||||
5 | 0,02 | |||
47 | 0,05 | |||
90 | 0,06 | |||
200 | 0,09 | |||
500 | 0,14 | |||
800 | 0,18 | |||
1000 | 0,21 | |||
1350 | 0,24 | |||
1750 | 0,28 | |||
2050 | 0,3 | |||
2300 | 0,32 |
Televes
24/48 Hours
Free shipping
(Iberian Peninsula)
EAN | 4031136021924 |
---|---|
System | RG6 |
Serie | 500m |
Entorno | Interior |
Color | White |
Cobertura Exterior Cables | PVC |
Conductor Interno Cables | Copper (Cu) |
Material Malla Coaxial | Copper (Cu) |
Product Brand | Televes |
