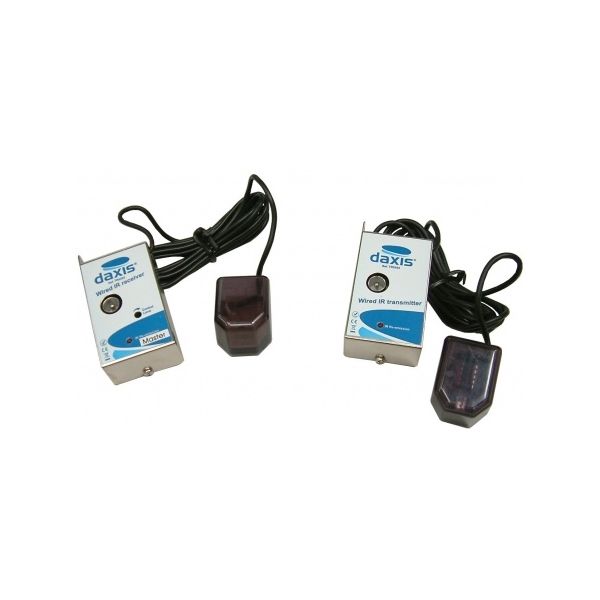

Coaxial cable IR transmitter and receiver kit from Daxis

SKU

DAXTR0203

Brands: Daxis

Availability: Out of stock

Delivery: Consult

€34.17 Tax included

Coaxial cable infrared extender

Do you want to transmit the infrared signal of a remote control by the coaxial cable? The TR0203 kit includes a transmitter and a receiver that allows us to extend the infrared signal of the remote control through the existing TV distribution network in the home.

Thanks to the TR0203 extender we can change channels on our television without the need for us to be in the same room or with direct contact to the receiver.

Details

The TR0203 extender allows us to operate our receiver from another room.

What technical characteristics does the TR0203 extender have?

Receiver specifications

Attenuation: 0.5dB
Input: 11MHz-ASK
Minimum level: <50dB μ V
Infrared output: 37 +/- 1KHz
Size: 70 × 38 × 23.5 (mm)
Weight: 30 g

Transmitter specifications

Attenuation: 0.5dB
Infrared frequency input: 35 ~ 41KHz
Modulation level: 0dB (0 ~ 10dB)
Size: 70 × 38 × 23.5 (mm)
Weight: 120 g

What is the TR0203 extender used for?

An infrared signal extender such as the TR0203 extender allows us to operate a receiver or a television from another room in the home thanks to the fact that it transmits the IR signal through the existing coaxial distribution network in our home.
