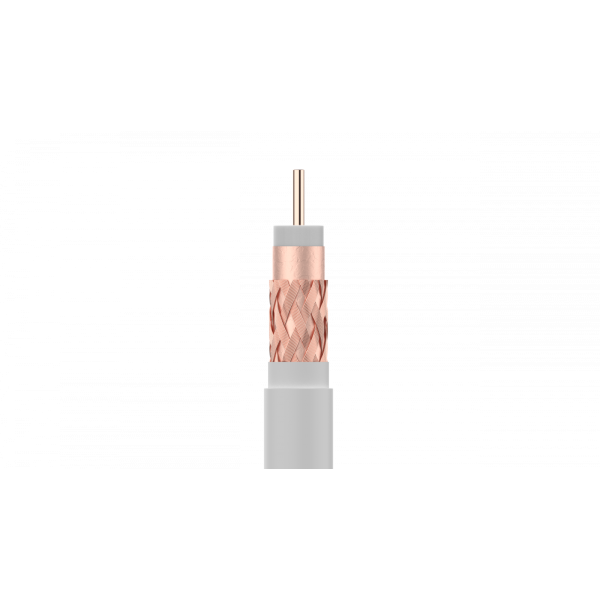

Coaxial cable with live and copper mesh and white PVC cover in 250m coil

Televes 214104 coaxial cable is a cable with live and mesh made of copper (Cu / Cu).

What technical characteristics does the 214104 cable have?

• Conductors made of copper
• Class A shielding
• Euroclass Eca
• Anti-migratory sheet that prevents the migration of additives d cover and moisture inside the cable, thus preventing the deterioration of its characteristics
• Outer PVC cover in white
• Characteristic impedance of 75 ohm
• Available in reels of different footage

What technical specifications does the 214104 cable have?

• Type T-100plus
• Standard EN 50117-2-4
• Eca EuroClase
• A class
• Central conductor Ø mm 1,13
• Cu Material
• Res. Ohm / Km <20
• Dielectric Ø mm 4.8
• PEE material
• Interior sheet Copper + Polyester
• Cu Material Mesh
• Dimensions (Ncx Nsx Ø) 16 x 8 x 0,11
• Res. Ohm / Km <12
• % coverage 73
• Anti-migratory sheet Yes
• Petro-Gel No
• Outer coverage Ø mm 6.6
• PVC material
• Minimum bend radius mm 33
• Shield at 1GHz dB> 85
• Capacity pF / m 55
• Impedance Ohm 75
• Transfer Impedance (5-30MHz) mOhm / m ≤5
• Propagation speed min. % 82
• Attenuations (dB / m)
• Frequency (MHz)
• 5 0.02
• 47 0.03
• 90 0.05
• 200 0.08
• 500 0.13
• 800 0.16
• 1000 0.19
• 1350 0.22
• 1750 0.25
• 2050 0.28
• 2300 0.3
