Comelit SBC Color Video 316 Sense Steel Modular Panel

SKU

COM3451S

Brands: Comelit

Availability: On request

Delivery: 1 to 7 days

€1,946.42 Tax included

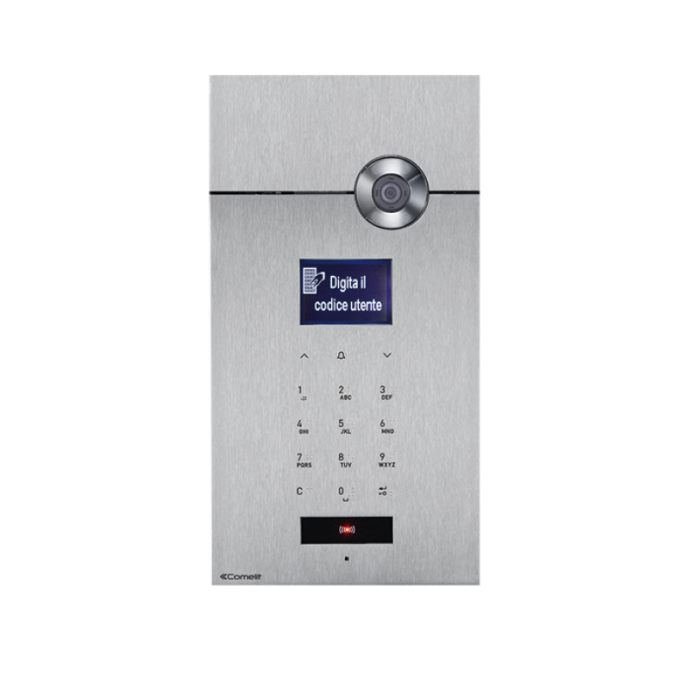

Comelit 316 Sense Modular cover plate

This entrance panel is compatible with all the products and features of the simplebus 2 system. It has a 128X64 dots LCD screen, integrated numeric buttons with Braille writing and built-in access control.

The initial welcome message can be customized, as well as change the language of the interface.

It is capable of memorizing up to 4,000 user names, 4,000 door opening passwords and 4,000 RFID keys.

For its configuration, a software is used through the PC (article 1249B), connecting it through the USB or RS485 port.

The plate is embedded flush with the wall. It is IK08 certified.

Details

Technical Specifications of the Comelit 316 Sense Modular Panel

GENERAL DATA
Height (mm)	342
Width (mm)	182
Depth (mm)	45
Product weight (g)	6000
Product color	Steel
Flush-mounted	Yes
Wall-mounted	Yes, with a dedicated accessory
COMPATIBLE SYSTEMS
Compatible audio and audio/video units	Art.4680C
Audio/video Simplebus 2 with power supply art. 4888C	Yes
DISPLAY
Display type	Graphic LCD
Display size (")	3
Resolution (pixel)	128x64
AUDIO FEATURES
Microphone	9.7 (ø), omnidirectional
Loudspeaker	50mm (Ø), 8 Ohm, 0.2W
Technologies implemented	Echo canceling

CAMERA FEATURES
Sensor type	1/3" CCD
Lens optical dimensions (mm)	3,6
Angle of view (H x V - °)	87 x 59
Sensitivity (lux)	0.35 (F2.0 / 50IRE)
Video resolution (H x V - pixel)
