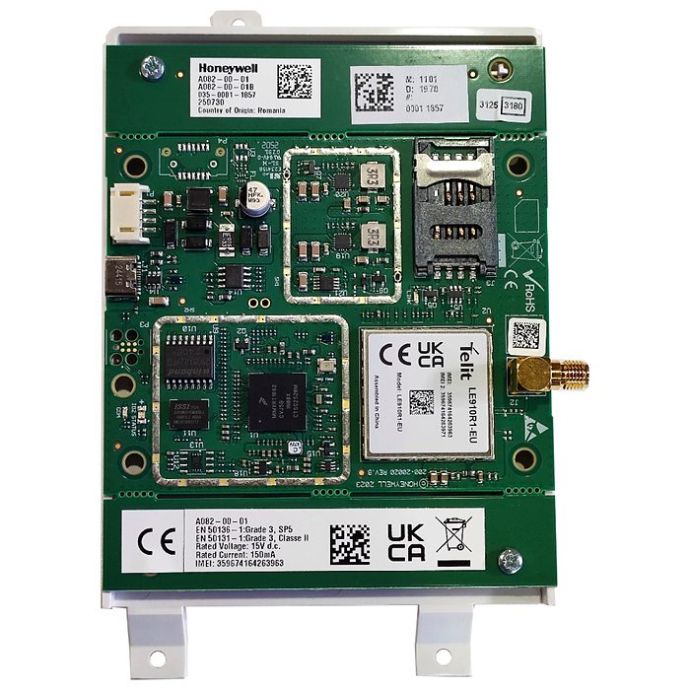

Honeywell Galaxy Flex Control Grade 3 4G/LTE Communicator
The Honeywell Galaxy Flex Control Grade 3 4G/LTE Communicator strengthens the alarm panel communication through a 4G/LTE mobile network, providing a reliable path to transmit events to alarm receiving centres and keep the installation operational when fixed connectivity is not available or stable.
This module works within the Galaxy Flex Control system and is intended for new installations or extensions of existing panels, not as a generic spare part. It can be used as a primary or secondary communication channel, which is especially useful in projects where uninterrupted alarm signalling is critical.
The Honeywell A082-00-01 includes 4G/LTE communication with 2G backup support, SMS commands for arming, disarming, omitting zones and RSS callback, as well as the ability to deliver IRV images for video verification with a PE receiver. It can be naturally integrated within a professional range of alarm accessories.
In short, it is a mobile communication solution for installers working with Galaxy Flex systems who need a Grade 3 certified module, with LTE, AES encryption and operation focused on event transmission, remote servicing and communication backup.
Extended information about Honeywell Galaxy Flex Control Grade 3 4G/LTE Communicator
Practical applications Honeywell Galaxy Flex Control Grade 3 4G/LTE Communicator
Example 1. Protection of an isolated logistics warehouse without a fixed line:
The A082-00-01 module is installed in a Galaxy Flex panel inside an industrial warehouse on an outlying business park, where wired fibre optic service is not available. The system uses a SIM card to transmit all alarms, faults and technical events directly and at high speed to the Alarm Receiving Centre (ARC) via the 4G/LTE network.
Example 2. Backup communication channel for Grade 3 security projects:
In installations where IP communication is already available, the Honeywell A082-00-01 module can operate as a secondary channel over 4G/LTE. This configuration helps maintain event transmission if the main line fails, while also supporting SMS commands, remote servicing and IRV image delivery for video verification when the system and receiver are compatible.
Package contents of the Honeywell Galaxy Flex Control Grade 3 4G/LTE Communicator
1 x Honeywell A082-00-01 4G/LTE communication module.
Supplied antenna for SMA connection, according to the installation guide.
Supplied fixing screws, according to the installation guide.
The exact commercial package contents should be confirmed with the manufacturer or supplier.
A valid and compatible 4G/LTE SIM card is required for operation; it has not been confirmed as included.
Technical specifications Honeywell Galaxy Flex Control Grade 3 4G/LTE Communicator
Parameter
Specification
Brand
Honeywell
SKU / reference
A082-00-01
Product type
4G/LTE communication module for intrusion control panel
Confirmed compatible system
Galaxy Flex Control / Galaxy Flex panel
Use
Alarm event communication and remote servicing over mobile network
Installation type
Module for new installations or extensions of Galaxy Flex systems; not a generic spare part
Communication channel
Primary or secondary / backup
Mobile network
4G/LTE
Mobile backup indicated by supplier
2G backup support
LTE bands
B1, B3, B7, B8, B20, B28
SIM card
Mini SIM 2FF, 25 x 15 x 0.76 mm
SMS functions
SMS commands for arming, disarming, omitting zones and RSS callback, according to supplier information
Remote servicing
Via mobile network; SMS callback connection or direct connection if the 4G/LTE SIM has a static IP address
Video verification
Capability to deliver IRV images for video alarm verification with PE receiver, according to supplier information
Encryption
128-bit AES for GPRS/LTE
Antenna
Supplied; SMA connection
LTE fault detection
Dedicated internal fault code triggered by loss of 4G/LTE network
Panel enrolment
Enrolment from menu 72 in engineering mode, assigning communication address 05 to the LTE module
Programming
GSM or GPRS menu on the control panel, option 56
Firmware update
Via USB Type-C cable, according to supplier information
Nominal voltage
15 V
Power
1.5 W in GSM / 1 W in LTE
Quiescent current
40 mA
Alarm current
70 mA for 30 seconds in 4G mode
Service temperature
-10 °C to +55 °C
Storage temperature
-20 °C to +70 °C
Relative humidity
Maximum 93%, non-condensing
Security grade
Grade 3
Environmental class
Class II
Standards indicated
EN50131-1, EN50136-1, PD6662
ATS
SP5 and DP4 depending on the configuration indicated in the manual
Protection rating
IP31
Impact resistance
IK04
Dimensions indicated by supplier
190 x 155 x 45 mm
Weight indicated by supplier/manual
0.2 kg / 200 g packaged
Certifications / marking
CE, UKCA, WEEE; NF&A2P indicated in the manual
Technical note
The module must be installed with the panel powered down and at least 1.5 m away from wireless peripherals to avoid interference
