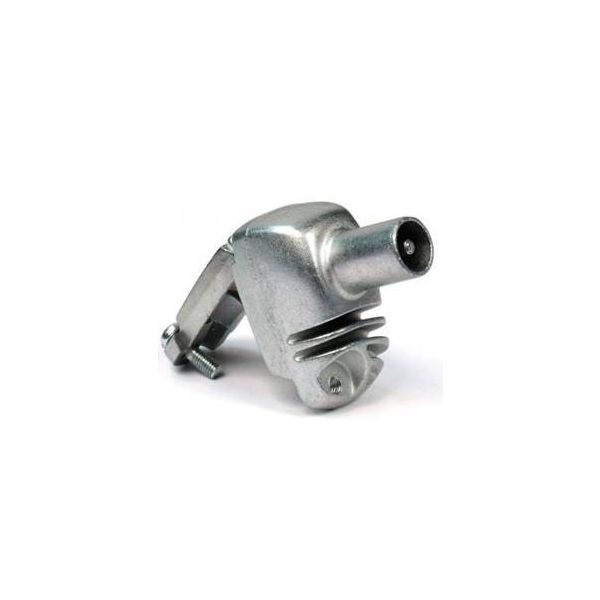

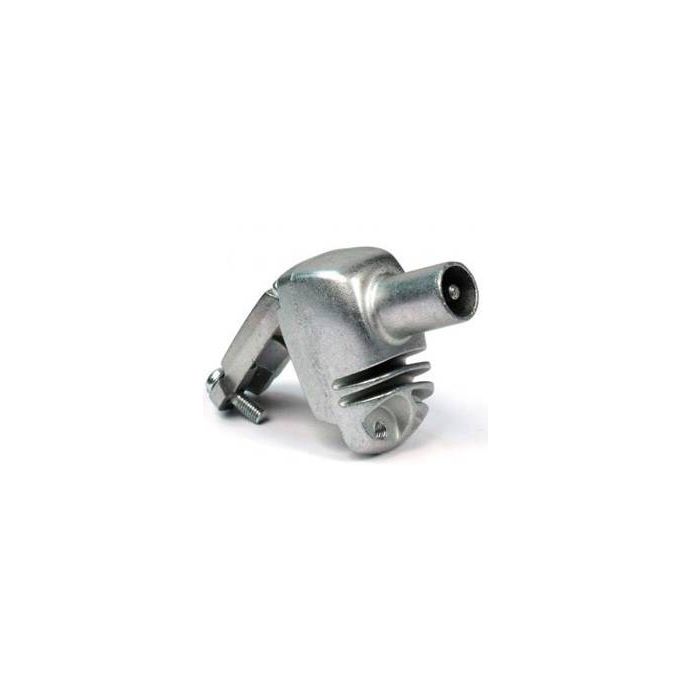

Male angled connector 9.5 mm "Easy F" Blister
Male angled connector 9.5 mm "Easy F" Blister
We present you a professional CEI type connector, compatible with most coaxial cable diameters. This connector is angled, which allows for a much simpler connection in places that are difficult to access.
Its mounting system is PRO EasyF type, which fixes the cable to the connector with just one screw, providing great quality in fixation and connectorization. The connector is shielded, as it is made of zamak and has an extra metal sheet, reinforcing the shielding.
The new PROEasyF connectors offer A+ shielding and facilitate assembly using a single screw that guarantees much more effective pressure on the central conductor than the snap-in connection of compression connectors.
Its manufacture in Zamak-5 with zinc plating provides extraordinary durability, guaranteed by the countless installations in which PRO connectors from previous generations are found.
Technical Specifications of the 9.5 mm "Easy F" Male Angled Connector Blister. Ref. 437401 from Televes.
*Convenient: Hinged lid and captive screw to lid
*Easy: the cable core is guided through a slot in a plastic stop
*Secure: serrated rows ensure perfect tightening of the cable jacket
*Simple: a single screw to tighten the assembly
*Class A+: extra shielding sheet
*Compact – no loose parts to store while connecting
*Made of Zamak: treated by zinc plating, bichrome plating and RPR
| EAN | 8424450133644 |
|---|---|
| System | Coaxial |
| Serie | Male Connect. |
| Color | Silver |
| Type | Connector |
| Connection type | CEI male |
| Product Brand | Televes |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha Técnica Conector acodado macho 9,5 mm "Easy F" Blister | 1.8 MB | Download |
