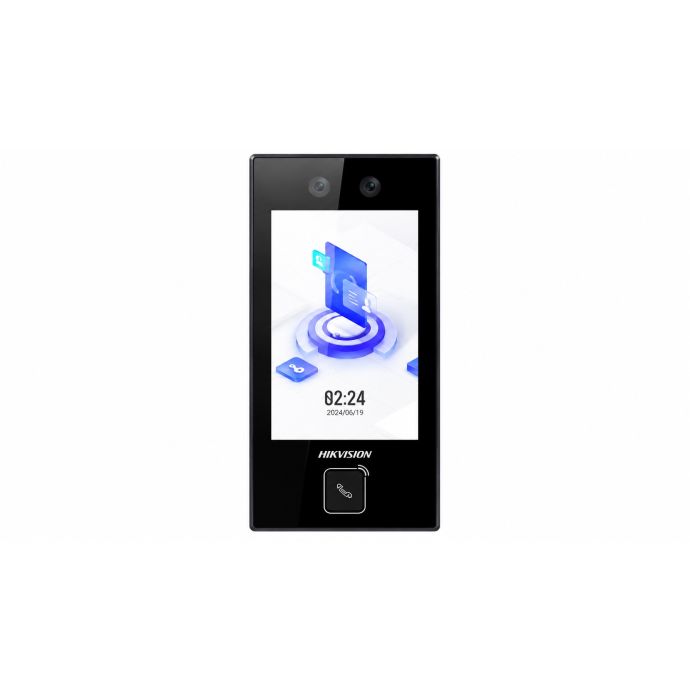

Hikvision IP65 PoE Access Control Terminal with 4.5" Colour TFT Touchscreen

SKU
DS-K1T344MBWX-E1/EU
Brands: Hikvision
€274.00
Tax included
% Discount for professionals
Hikvision
Availability: In stock
5 days

Hikvision DS-K1T344MBWX-E1/EU Standalone Facial Recognition Terminal

The Hikvision DS-K1T344MBWX-E1/EU combines access control and time attendance management in a standalone terminal with a 4.5-inch touchscreen. Its integrated reader, controller and door relay simplify deployment in offices, commercial buildings, industrial facilities and restricted areas.

It supports up to 3,000 users and 150,000 event records, with authentication by facial recognition, 13.56 MHz M1/MIFARE cards, PIN, Bluetooth and QR codes. Its dual 2 MP camera recognises faces in under 0.2 seconds, with over 99% accuracy and anti-spoofing technology to help prevent authentication using reproduced images.

Designed for professional access control systems, it provides Ethernet, Wi-Fi, IEEE 802.3at PoE, RS-485, Wiegand and USB connectivity. It is suitable for new installations and complete system upgrades, rather than as a model-specific spare part, and supports compatible MIFARE cards, key fobs and wristbands.

Its IP65 protection rating makes it suitable for indoor and outdoor access points. Management through HikCentral Professional, iVMS-4200 or Hik-Connect Teams enables access event, attendance, punctuality and working-hour reporting, depending on the selected platform and configuration.

Reference: DS-K1T344MBWX-E1/EU

-
+

Further information about the Hikvision DS-K1T344MBWX-E1/EU 4.5" PoE IP65 Access Control Terminal

Practical applications of the Hikvision DS-K1T344MBWX-E1/EU

Example 1. Access control and time attendance in a multi-shift office

An integrator can install the DS-K1T344MBWX-E1/EU at the main entrance to authorise access by facial recognition, MIFARE card or PIN while recording employee working times. Its capacity for 150,000 events provides an extensive history for preparing attendance, punctuality and working-hour reports through the selected management platform.

Example 2. Upgrading an industrial entrance with PoE

In an industrial facility with an existing Ethernet network, the installer can replace a basic reader with this standalone access control terminal and use PoE to simplify power and data cabling. Its IP65 protection, facial recognition distance of 0.3 to 1.5 metres and anti-spoofing technology make it suitable for controlling an outdoor entrance or frequently used restricted area.

Package contents of the Hikvision DS-K1T344MBWX-E1/EU Access Control Terminal

  • 1 × Hikvision DS-K1T344MBWX-E1/EU access control terminal.

Technical specifications Hikvision DS-K1T344MBWX-E1/EU Access Control Terminal

Specification Details
Brand and model Hikvision DS-K1T344MBWX-E1/EU
Product type Standalone access control and time attendance terminal
Recommended application New access control installations and complete system upgrades
Operating system Linux
Display 4.5-inch LCD touchscreen
Display resolution 480 × 854 pixels
Camera Dual 2 MP lens
Authentication methods Face, M1/MIFARE card, PIN, Bluetooth and QR code via camera
User capacity 3,000 users
Face capacity 3,000 faces
Card capacity 3,000 cards
Event capacity 150,000 event records
Card technology M1/MIFARE, 13.56 MHz
Facial recognition time Less than 0.2 seconds per user
Facial recognition accuracy Over 99%
Facial recognition distance 0.3 to 1.5 metres
Face anti-spoofing Supported
Wired network 10/100 Mbps self-adaptive Ethernet
Wireless connectivity Wi-Fi and Bluetooth
Communication interfaces 1 × Ethernet, 1 × RS-485, 1 × single-direction Wiegand input and 1 × USB
Door control 1 × lock control output
Inputs 2 × alarm input, 1 × exit button input and 1 × door contact input
Outputs 1 × alarm output
Tamper protection 1 × tamper input
Intercom functions Two-way audio and physical call button
Power supply 12 VDC, 1 A or standard IEEE 802.3at PoE
Environmental protection IP65
Operating temperature -30°C to 60°C
Operating humidity 10% to 90%, non-condensing
Materials Aluminium alloy and tempered glass
Installation Wall mounting
Dimensions 165.2 × 75.7 × 25 mm
Weight 0.30 kg net; 0.60 kg gross
Management platforms HikCentral Professional, HikCentral Access Control, iVMS-4200 and compatible Hik-Connect deployments
