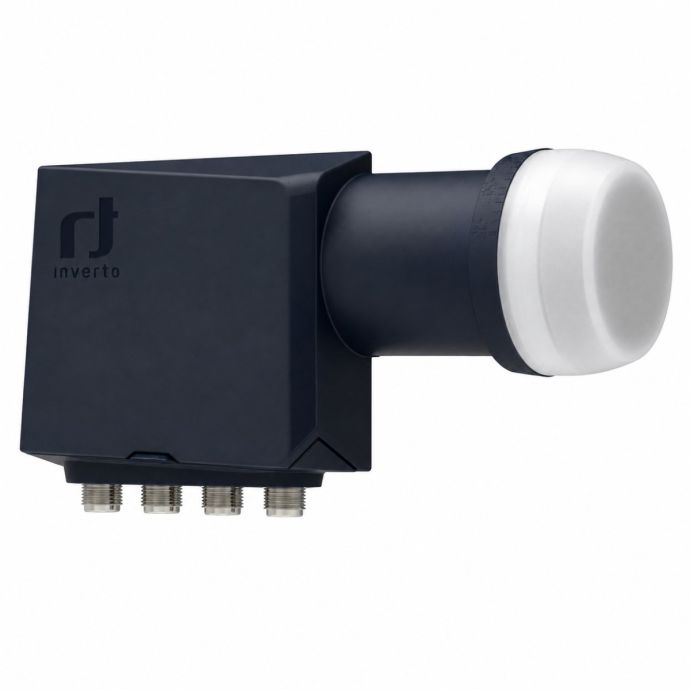

main product photo

Inverto Universal Quattro Premium 0.2dB LNB

SKU
INV6521
Brands: Inverto
€23.37
Tax included
% Discount for professionals
Inverto
Availability: On request
1 to 7 days

Inverto 6521 Premium 40mm PLL Quattro LNB for Multiswitch Systems

The Inverto Universal Quattro Premium 0.2dB LNB is designed to receive satellite TV and radio signals and provide the four independent band and polarization combinations required for professional distribution systems. It is particularly suitable for satellite headends, apartment buildings, hotels and communal installations where signal stability and reliable distribution are essential.

Unlike a Quad LNB, this Quattro LNB is not intended for direct connection to satellite receivers or TVs. Its four outputs provide VL, VH, HL and HH signals to a multiswitch, which then distributes the required satellite signal to each user or outlet. This makes it a very suitable choice for professional projects with multiple reception points.

Its typical 0.2dB noise figure, high frequency stability and low phase noise help provide clean and stable reception even in demanding installations. Inverto also states that the LNB is engineered to mitigate interference from 4G/LTE transmissions and supports HD and UHD signals, making it especially suitable for modern high-performance satellite distribution systems.

This model is mainly intended for new installations or the upgrade of satellite distribution headends, rather than as a dedicated spare part for a specific device. It can be fitted to a compatible 40mm holder on a satellite dish and connected via its four outputs to the appropriate multiswitch. Overall, it provides a professional solution for SAT systems where low noise, frequency stability and reliable signal distribution are key requirements.

Reference: INV6521

-
+

Extended information about Inverto Universal Quattro Premium 0.2dB LNB

Practical applications of Inverto Universal Quattro Premium 0.2dB LNB

Example 1. Communal satellite distribution in apartment buildings:

A satellite dish fitted with the Inverto 6521 Quattro LNB can feed the four satellite band and polarization combinations to the corresponding inputs of a multiswitch. The multiswitch can then distribute the required satellite signal to multiple apartments, allowing each connected receiver to access the necessary transponder independently. This makes the LNB a suitable choice for SMATV and communal reception systems.

Example 2. Satellite headend for hotels and large installations:

In hotels, residences and buildings with many satellite outlets, the Quattro Premium LNB can be used as the reception stage of the distribution headend. Its high frequency stability, low phase noise and 4G/LTE interference mitigation are particularly useful in professional installations where reliable HD and UHD signal distribution is required over multiple outlets. :contentReference[oaicite:1]{index=1}

Package contents of Inverto Premium 40mm PLL Quattro LNB

  • 1 x Inverto Premium 40mm PLL Quattro LNB, model IDLP-QTL413-PREMU-OPN.

Technical Specifications Inverto Universal Quattro Premium 0.2dB LNB

Specification Value
Manufacturer Inverto
Manufacturer item 6521
Model / OPN IDLP-QTL413-PREMU-OPN
Type Universal Quattro PLL LNB
Feed neck diameter 40 mm
Low band input frequency range 10.7 - 11.7 GHz
Low band output frequency range 950 - 1950 MHz
Low band LO frequency 9.75 GHz
High band input frequency range 11.7 - 12.75 GHz
High band output frequency range 1100 - 2150 MHz
High band LO frequency 10.6 GHz
Noise figure 0.2 dB typ. / 0.7 dB max.
LO temperature drift @ 60°C ±2.0 MHz max.
LO initial accuracy @ 25°C ±500 kHz max.
LO phase noise @ 1 kHz -70 dBc/Hz
LO phase noise @ 10 kHz -80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
LO phase noise @ 1 MHz -100 dBc/Hz
Conversion gain 57 - 67 dB
Gain ripple over 26 MHz bandwidth 1 dB max. peak-to-peak
Gain variation over full band 4 dB max. peak-to-peak
Image rejection 40 dB min.
3rd order intermodulation - ICP3 +10 dBm min.
1 dB compression point at output 0 dBm min.
Cross-polarization isolation 22 dB min.
Output VSWR 2.0:1 max.
In-band spurious level -65 dBm max.
Current consumption 230 mA max.
Operating voltage 10 - 20 VDC
Operating temperature -30°C to +60°C
Output impedance 75 Ω
Output connector type F-Type female
Weight 176 g
Packaging dimensions 14.6 x 8.3 x 5.6 cm
Packaging weight 211 g
Quantity per carton 50
Carton dimensions 43.5 x 31.0 x 30.5 cm
Carton weight 11.2 kg
Quantity per pallet 1800
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
System SAT LNB
SERIE SAT Quattro
Color Black
LNB type Universal
Output number HL HH VL VH (Quattro)
Noise level 0,2
Gain >60 db
Usar stock disponible No
Product Brand Inverto
Reviews
Write Your Own Review
You're reviewing:Inverto Universal Quattro Premium 0.2dB LNB
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Conversor LNB Universal Quattro Premium 0,2dB de Inverto 286.3 KB Download
