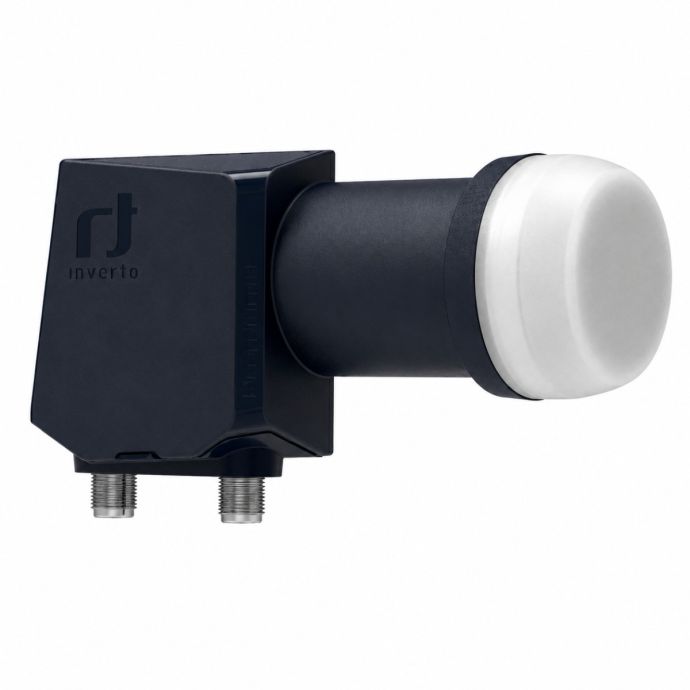

Inverto Universal Twin Premium 0.2dB LNB Converter

SKU
INV6519
Brands: Inverto
€18.17
Tax included
% Discount for professionals
Inverto
Availability: On request
1 to 7 days

Inverto Universal TWIN Premium 0.2 dB LNB

The Inverto Universal Twin Premium 0.2 dB LNB is designed to receive television and radio signals from a single satellite and distribute them independently to two receivers, or to one receiver equipped with a twin tuner/PVR. Its Twin configuration allows two coaxial cables to be connected without the band or polarity selected by one user affecting the other.

It operates in the universal Ku band, with an input frequency range of 10.7 to 12.75 GHz and an output range of 950 to 2150 MHz. It offers a typical noise figure of just 0.2 dB, a conversion gain of 57 to 67 dB and compatibility with DVB-S2 HD and UHD transmissions, making it especially suitable for Astra, Hotbird and other satellite installations using offset dishes. You can also explore our range of satellite LNB converters.

One of its key advantages is its design to mitigate 4G/LTE interference, together with low phase noise and high frequency stability. This makes it a particularly suitable choice for installers looking for reliable satellite reception in locations affected by nearby mobile signals or significant temperature variations. You can also find other products from Inverto available at TDTprofesional.

This product is mainly intended for new installations and upgrades of individual satellite reception systems, although it can also be used as a replacement for a compatible Universal Twin LNB with a 40 mm neck. Its operating temperature range of -30 °C to +60 °C and maximum LO temperature drift of ±2 MHz at 60 °C help maintain stable signal conversion even under demanding outdoor conditions.

Reference: INV6519

-
+

Extended information about Inverto Universal Twin Premium 0.2 dB LNB

Practical applications of the Inverto Universal Twin Premium 0.2 dB LNB

Example 1. Independent satellite reception in two rooms:

In a home with a dish aligned to Astra, Hotbird or another single satellite position, the Inverto Twin LNB INV6519 can feed two independent coaxial runs. Each receiver can select its own band and polarization without interfering with the other, making this configuration suitable for installations with two separate satellite TV points.

Example 2. Twin-tuner or PVR satellite receiver:

For a satellite receiver equipped with two tuners, both LNB outputs can be connected directly to the receiver’s two inputs. This allows the receiver to use both tuners independently, for example when viewing one service while simultaneously using the second tuner for another signal path. Its low phase noise and high frequency stability also support reliable HD and UHD DVB-S2 reception.

Package contents of the Premium TWIN-PR

  • Exact package contents are not specified in the supplied documentation; confirmation with the manufacturer or supplier is recommended.

Technical specifications of the Premium TWIN-PR

Brand Inverto
Manufacturer model Premium TWIN-PR
Manufacturer item 6519
SKU INV6519
Type Universal Twin PLL LNB
Number of outputs 2 independent outputs
Output connector F-Type female
Output impedance 75 Ω
Reception band Ku band
Low-band input frequency 10.7 – 11.7 GHz
Low-band output frequency 950 – 1950 MHz
Low-band LO frequency 9.75 GHz
High-band input frequency 11.7 – 12.75 GHz
High-band output frequency 1100 – 2150 MHz
High-band LO frequency 10.6 GHz
Noise figure 0.2 dB typ. / 0.7 dB max.
Conversion gain 57 – 67 dB
Gain ripple over 26 MHz bandwidth 1 dB max. peak-to-peak
Gain variation over full band 4 dB max. peak-to-peak
Image rejection 40 dB min.
3rd order intermodulation ICP3 +10 dBm min.
1 dB compression point at output 0 dBm min.
Cross-polarization isolation 22 dB min.
Vertical control voltage 10.0 – 14.0 V
Horizontal control voltage 16.0 – 20.0 V
Band switching signal 22 kHz ±4 kHz
Output VSWR 2.0:1 max.
In-band spurious level -65 dBm max.
Current consumption 150 mA max.
Supply voltage 10 – 20 VDC
LO temperature drift at 60 °C ±2.0 MHz max.
Initial LO accuracy at 25 °C ±500 kHz max.
LO phase noise @ 1 kHz -70 dBc/Hz
LO phase noise @ 10 kHz -80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
LO phase noise @ 1 MHz -100 dBc/Hz
Operating temperature -30 °C to +60 °C
Neck diameter 40 mm
Overall length according to drawing 125 mm
Height according to drawing 73.8 mm
Neck length according to drawing 38.6 mm
Front diameter according to drawing Ø48.55 mm
Weight 128 g
Packaging dimensions 13 × 7.7 × 5.6 cm
Packaging weight 158 g
Quantity per carton 50
Carton dimensions 40.5 × 27.8 × 30.5 cm
Carton weight 8.4 kg
Quantity per pallet 2400
Transmission support DVB-S2, HD and UHD
Interference protection Engineered to mitigate 4G/LTE transmissions
Application 1 satellite / 2 independent receivers or 1 twin-tuner/PVR receiver
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
System SAT LNB
SERIE SAT Twin
Color Black
LNB type Universal
Output number 2 (Twin)
Noise level 0,2
Gain >60 db
Usar stock disponible No
Product Brand Inverto
