Data coil Category 7 White (500 meter coil) 219102

SKU

TEL219102C

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€518.36 Tax included

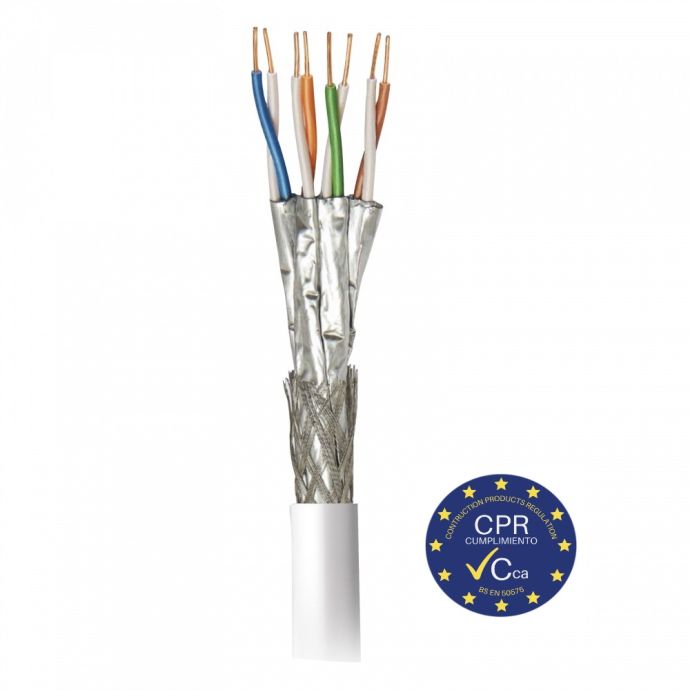

Data coil STP CAT7 Cca Cu LSFH White (500 meter coils)

This coil is supplied on a wooden reel, with a length of 500 meters of white cable (RAL 9010).

The data cable is category 7 and Euroclass Cca. It is shielded both individually in its pairs and at the general cable level. It is an S/FTP type cable, whose central conductor is solid copper.

This cable is ideal for the installation of data networks in computers, surveillance cameras, switches, intercoms, etc.

It complies with the standard for 10 gigabit Ethernet, being compatible with the lower categories, being able to reach a transmission frequency of up to 600MHz.

Details

Technical Specifications of the Data Coil STP CAT7 Cca Cu LSFH White (coils of 500 meters)

Type S/FTPEuroclass CcaEuroclass: Smoke Production s1aEuroclass: Flaming droplets d1Euroclass: Acidity a1Categorie Cat 7Transmission bandwidth 600MHzTransfer rate 10GbpsConductor Diametermm0.55Conductor Material Solid copperConductor type AWG 23Conductor isolation Diametermm1.3Conductor isolation Material PolyethyleneCrucifix filter NoShielding foil of pairs Aluminium + PolyesterOuter shielding braid Tinned copper (CuSn)Outer sheath Diametermm7.4Outer sheath Material LSFHOuter sheath Thicknessmm0.7Rip cord NoSpark TestVac3000Nominal impedanceΩ100Nominal speed%79Operating temperature°C-25 ... 70Frequencies

1 MHz

4 MHz

10 MHz

16 MHz

20 MHz

31.25 MHz

62.5 MHz

100 MHz

155 MHz

200 MHz

300 MHz

600 MHz
