Desktop Switch 8 ports 10/100Mbps Mercusys

SKU
MER-MS108
Brands: Mercusys
Availability: In stock
24/48 Hours
€9.01 Tax included
Mercusys

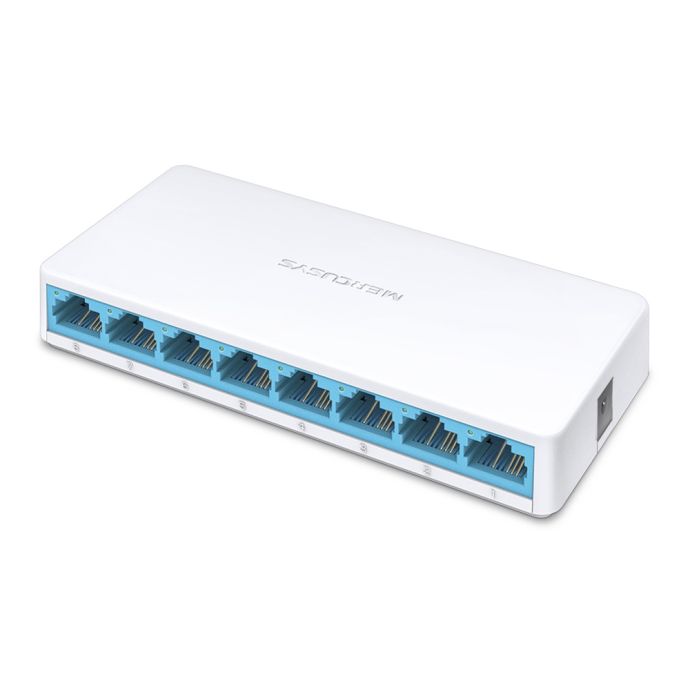

8-Port 10/100Mbps Desktop Switch Mercusys MS108

Ultra-compact desktop switch with 8 RJ45 Fast Ethernet (10 100Mbps) ports with auto-negotiation and auto MDI/MDIX. Half/Full Duplex technology and MAC address learning, with up to 1.6Gbps of stable bandwidth.

Simple to use switch (Plug & Play), no configuration required, and compact design. For flexible and easy Ethernet network expansion in your home or office. Compatible with computers, printers, IP cameras, consoles and smartTVs.

Mercusys SOHO switches guarantee durability and uninterrupted operation for years to come.

Ultra compact 8 port RJ45 Fast Ethernet (10/100 Mbps) desktop switch.

What are the main features of the Mercusys MS108 8-port switch?

  • Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
  • Easily wired network expansion
  • Compact design for flexible arrangement
  • Plug and play setup, no configuration required

What technical specifications does the Mercusys MS108 8-port switch have?

Environment

Temperatura de Funcionamiento: 0℃~40℃ (32℉~104℉);
Temperatura de Almacenamiento: -40℃~70℃ (-40℉~158℉)
Humedad de Funcionamiento: 10%~90% sin condensación
Humedad de Almacenamiento: 5%~90% sin condensación

External Power Supply

Adaptador de corriente externo
(Salida: 5.0VDC / 0.6A)

Interfaces

8 puertos 10/100Mbps, auto-negociación, auto-MDI/MDIX

Fan Quantity

Sin ventilador

Data Rates

10/100Mbps con half duplex

20/200Mbps con full duplex

Transfer Method

Almacenamiento y reenvío

Package Contents

Switch Sobremesa 8-Puertos 10/100Mbps

MS108

Adaptador corriente

Guía de instalación rápida

Dimensions (W X D X H) 127 x 60.3 x 22 mm
Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD
Buffer Capacity 768Kb
Jumbo Frame 2KB
Switching Capacity 1.6Gbps
LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Certifications CE, RoHS

More Information
EAN6957939000387
SystemNOT POE
SERIE8 Ports
ColorWhite
Network EquipmentSwitch
Ports8
Data SpeedFast Ethernet (10/100Mbps)
PoENo
Product BrandMercusys
