Dinova 5G Televes DTT-UHF Antenna (without accessories) OUTLET

SKU
OUTTEL144021
Brands: Televes
€74.74
Tax included
Televes
Availability: In stock
24/48 Hours

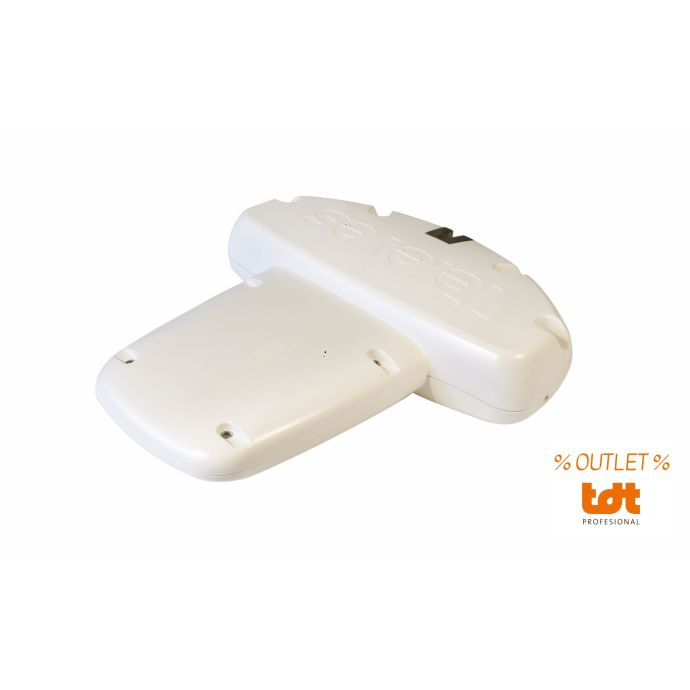

OUTLET: Televes Dinova DTT-UHF Dinova antenna with 5G filter

Discreet Televes Dinova 144021 UHF directive antenna Dinova 144021 ideal for those who need a small terrestrial antenna that does not change the aesthetics of its facade.

The Dinova is an active antenna that can be fed at 12-24V if signal amplification of up to 34 dB maximum is required, the gain is automatically regulated according to the level of signal received, whether very strong or very weak.

This DTT antenna is suitable for use in the 2nd Digital Dividend thanks to its integrated LTE2 filter to reject channels above 48 and thus eliminate interference with the 5G. It captures between channels 21-48.

IMPORTANT: THIS ANTENNA IS ONLY RECOMMENDED FOR INSTALLATION IN THOSE PROVINCES WHERE BROADCASTING IS BELOW CHANNEL 49.

What is OUTLET of TDTprofesional?

Our Outlet category is composed of products returned by our customers, which are in perfect condition and have been tested by our technical department to ensure proper operation. The product packaging may be damaged or the product may not be shipped in its original packaging. Our Outlet products include a special discount and have the same warranty as new products.

OUTLET: Technical Specifications of the Dinova Televes TDT-UHF Antenna with 5G filter

Televes Dinova DTT-UHF antenna with maximum gain of 34 dB if fed and integrated 5G LTE filter for the Second Digital Dividend.

What are the main features of the Televes Dinova 144021 antenna?

  • High dynamic range: allows you to receive quality TV in a variety of critical situations, from areas with very weak signals to installations with high levels of reception.
  • Increased DTT coverage area
  • Very high gain
  • More stable reception: able to withstand signal variations or fading without affecting the TV installation.
  • Protected against corrosion:
    • Glass fiber reinforced jaw support: does not rust, reduces antenna weight and improves weathering performance.
    • RPR (Reactive Protective Coating) clamp, which also offers a robust fixing.
    • Radome with high resistance to salinity, humidity and other adverse climatic phenomena (IP 53).
  • Low power consumption in smart mode.
  • Incorporates SAW (Surface Acoustic Wave) filter for high rejection of telephony LTE interference, due to the use of 5G/4G devices.
  • Two modes of operation:
    • In intelligent mode (feeding the antenna), the BOSS provides automatic regulation, to correct for signal fluctuations and maintain the optimum output level.
    • In passive mode, the signal is allowed to pass through (without feeding).
  • Allows installation for horizontal and vertical polarization.

What technical specifications does the Televes Dinova 144021 antenna have?



Work band MHz LTE700 470 - 694
Channels LTE700 21-48
BOSS Mode OFF ON
Maximum gain dBi 04-jul 34*
Output level dBμV ---- Auto*
Noise figure dB ---- 2,5
Supply voltage V 0 dic-24
Maximum current mA ---- 45
Protection index IP 53
Wind load N 70 (@ 130 km/h)
96 (@ 150 km/h)

* The gain varies automatically according to the output level.

More Information
EAN8424450190722
Hight0.080
Length0.645
Width0.366
DTT SystemDTT Reception
SERIES DTTNova
TypeDTT 5G
EntornoExterior
OrientationDirective
GainHigh
DipoleActive
LTE compatibleYes
Supply requiredYes, not included
Feed Power 12 Vc, 24 Vc
Product BrandTeleves
