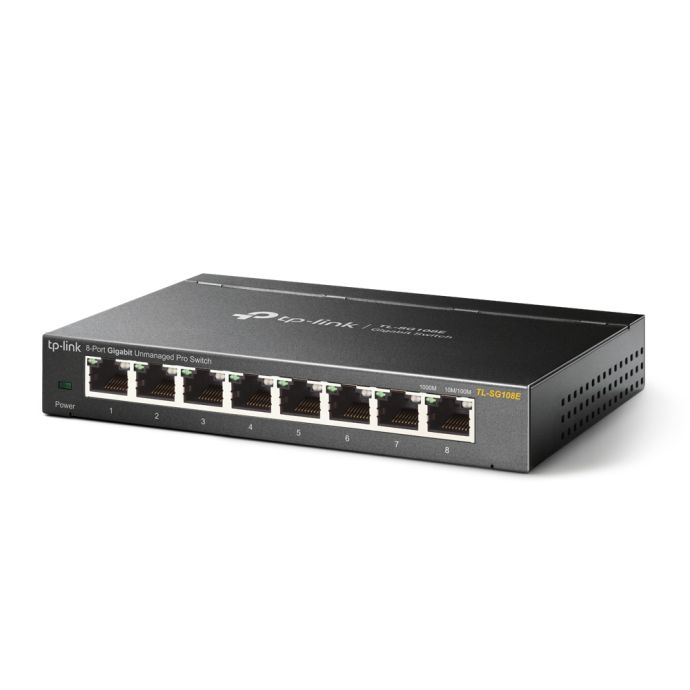

Easy Smart Switch 8-port Gigabit TL-SG108E
€41.38
Tax included
Switch 8 ports RJ45 10/100 / 1000Mbps TP-LINK
The TL-SG108E Non-Manageable Switch Pro is an ideal upgrade for non-manageable switches, suitable for home or small business networks.
The plug-and-play design makes deployment easy without the need for a technician, while its robust metal case provides better protection for its components.
Equipped with intelligent management features such as QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple networks and high demand environments.
24/48 Hours
The auto negotiation on each port detects the link speed of the connected device and intelligently adjusts the configuration for optimal compatibility and performance.
What technical characteristics does the TL-SG108E switch have?
- 8 ports of 10/100 / 1000Mbps RJ45
- Plug and play, without the need to configure
- High quality and professional looking durable metal housing
- Smart management via web interface and / or with downloadable utility
- Green technology reduces power consumption
What technical specifications does the TL-SG108E switch have?
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 ports 10/100 / 1000Mbps RJ45 AUTO Negotiation / AUTO MDI / MDIX |
| Network Media | 10BASE-T: UTP cable category 3, 4, 5 (maximum of 100m) EIA / TIA-568 100Ω STP (maximum of 100m) 100BASE-TX: UTP cable category 5, 5e (maximum of 100m) EIA / TIA-568 100Ω STP (maximum of 100m) 1000BASE-T: UTP cable category 5, 5e, 6 or higher (maximum of 100m) EIA / TIA-568 100Ω STP (maximum of 100m) |
| Number of Fans | Without fan |
| Power supply | External power adapter (Output: 9VDC / 0.6A) |
| Dimensions | 158 * 101 * 25 mm |
| Maximum Power Consumption | 3.55W (220V / 50Hz) |
| Max Heat Dissipation | 12.12BTU / h |
| PERFORMANCE | |
|---|---|
| Switching Capability | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Address Table MAC | 4K |
| Memory of the Packet Buffer | 1.5Mb |
| Jumbo Frame | 15KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of service | Supports port-based and 802.1p priority Supports 4 priority queues Traffic limiter Storm Control |
| Characteristics L2 | IGMP Snooping V1 / V2 / V3 Static port aggregation Port Mirroring Cable Diagnostics Prevention of loops |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4,000 VLANs) MTU VLAN / Port / Label |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certifications | FCC, CE, RoHS |
| Package content | TL-SG108E Power cable Installation guide Rubber bases |
| System Requirements | Microsoft® Windows® XP, Vista ™ Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environmental factors | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
24/48 Hours
| EAN | 6935364021856 |
|---|---|
| Color | Black |
| Network Equipment | Switch |
| Ports | 8 |
| Data Speed | Gigabit (10/100/1000Mbps) |
| PoE | No |
| Product Brand | Tplink |
