EasyF 4W Tap (20 dB)

SKU
TEL544602
Brands: Televes
€13.43 Tax included
Televes
Availability: In stock
24/48 Hours

Internal shunt with 4 secondary outlets flange

544602 4-way shunt for Satellite and Terrestrial signals (5 - 2400 MHz) with Televes EasyF flange type connections, recommended for installation on floors 4 and 5 due to its high attenuation of 20dB.

Flange type connections facilitate and reduce the cost of installation as they are made directly with bare wires, without connectors.

It is installed indoors, it can be installed outdoors whenever it is inside a chest.

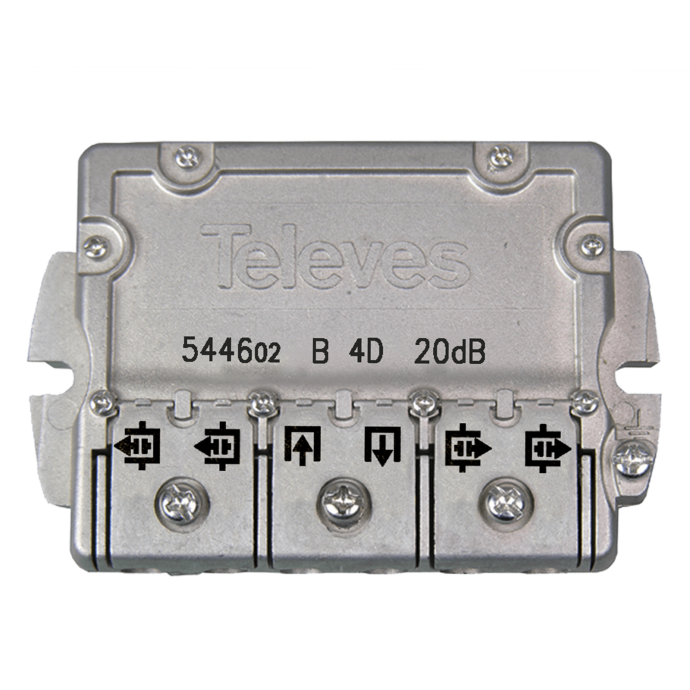

Derivator of 4 outputs type B 544602 Televes with flange connections.

What are the main features of the Televes 544602 tap?

  • EasyF connection system: easy to install, savings on mounting
  • Made of Zamak, high shielding
  • Outstanding reliability: automated manufacturing using new generation micro-components
  • Improves through losses
  • Outstanding electrical behaviour: impulsive noise reduction
  • Grounding screw provided
  • Bidirectional DC pass between input and pass output

What technical specifications does the Televes 544602 tap have?

Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 4
Floors 4 & 5
Through loss dB 0,8 1-1,8
Tap loss 21
Rejection between taps >28 >22
DC Pass (max.) mA 300 (in.↔out.)
More Information
EAN8424450143780
Hight0.153
Length0.088
Width0.064
DTT SystemDTT & SAT Distribution
MANUFACTURER SERIES DTTBrida Connector
ColorSilver
TV-SAT Distribution EquipmentDiverter
EntornoInterior
TV-SAT Distribution ConnectionFlange
Outputs4
Input signalFI, FM, UHF, VHF
Insertion Loss (dB)20
Current bypassYes
Product BrandTeleves
