EK Broadband Central 3 Inputs: VHF/UHF1/UHF2 44dB

EK Broadband 3 Inputs UHF1/UHF2/VHF 44dB Broadband Switcher

We present the new EK broadband central, which will guarantee a good distribution of terrestrial television signals, ensuring excellent quality and adapting to the specific needs of each installation.

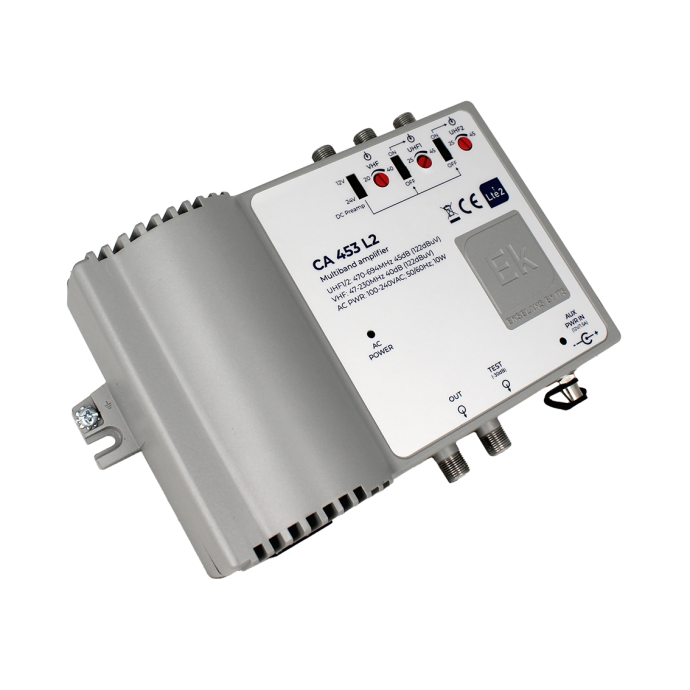

The CA 453 L2 broadband central station is a device that amplifies the terrestrial television signal in collective radio and television installations of medium and large size. It has 3 independent inputs (UHF1/UHF2/VHF) with gains of 35dB (BIII-DAB), and 44dB (2xUHF) and with an output level of 124dBμV.

The broadband central has independent regulation per input, its gain control adjusts the signal power to avoid being too strong or weak to improve image quality and avoid interference.

It also has a high efficiency power supply and a 2.1mm jack connector for redundant power supply. It also has a test output (-30dB).

It has a compact size and a grounding point. Its installation is very simple, just fix the control panel to the wall with screws (included) and make the connections.

Reference: EK063006
