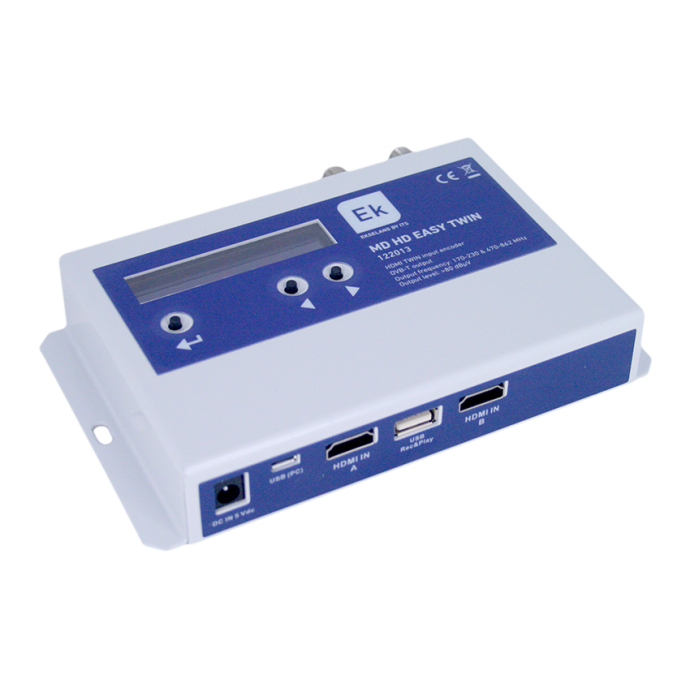

Ek Easy Twin MD HD Digital COFDM/QAM Modulator with 2 HDMI Inputs

SKU
EK122013
Brands: EKSELANS
€567.49
Tax included
Free shipping
(Iberian Peninsula)
EKSELANS
Availability: On request
1 to 7 days

EK Easy Twin MD HD Modulator 2 Inputs

Would you like to be able to see the signal from your decoder, camera or player on all the TVs in your home, hotel or business as another DTT channel? With the EK 122013, a COFDM/QAM digital modulator with 2 HDMI inputs, you will have just that and much more, with the quality and ease you need.

This modulator transforms HDMI signals into DVB-T (DTT) or DVB-C (cable) channels, allowing them to be distributed over the existing coaxial network, without the need for additional decoders. So you can, for example, broadcast the channel of a player or security camera on all televisions in the establishment.

It has two independent HDMI inputs, allowing you to generate two different channels at the same time, ideal for facilities that require more than one customized content, such as hotels, bars, gyms or clinics. All with Full HD quality and easy configuration through its display and buttons.

In addition, the EASY series modulators allow us to delay the audio, so that it is synchronized with the image.

Where can you use it? In homes to share the set-top box or console, in hotels to insert your own channel or in venues that broadcast events on different screens - no extra hassle and no extra cables everywhere!

Package contents:

  • Modulator EK 122013 MD HD Easy Twin
  • 5V DC power supply

With the EK 122013, turn your HDMI signal into a professional channel for your entire installation - easier, neater, more spectacular!

Technical Specifications of the MD HD Easy Twin Modulator 2 EK Inputs

REFERENCE   MD HD EASY TWIN
Code   122013
Input   2x HDMI (A /B)
VIDEO
Video resolution   480p - 576p - 720p - 1080p
Video compression   H.264
Video rate Kbps 500-15000
AUDIO
Audio Compression   MPEG1-L2, AAC-LC
Audio Rate Kbps 128, 192, 256, 320
MODULATION
DVB Processing   NIT, PID
DVB Configuration   NID, ONID, Network ID, Network name, TS ID, Program ID, Program name, PMT PID, Video PID, Audio PID
Output Frequency MHz 170-230 & 470-862
Output Channel N. 5…12 + 21…69
Output Level dBµV >80
Attenuation dB 0…15
MER dB ≥33
Bandwidth MHz 6, 7, 8
Constellation   QPSK, 16QAM, 64QAM
Mode   2K, 8K
FEC   1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval   1/4, 1/8, 1/16, 1/32
LCN   EACEM, ITC, NORDIG
RF Loop dB -2
USB
USB connector   Recording/Playing .ts Files
USB type B connector   Programming via PC
GENERAL
Supply voltage Vdc +5 (Optional RF OUT Passthrough)
Power consumption W <5
Size mm 170 x 100 x 25
Weight kg 0,6
More Information
EAN8436548992545
Hight0.000
Length0.000
Width0.000
DTT SystemDigital Modulator
SERIES DTTHDMI
ColorBeige
TypeModulator
Input signalHDMI
Output signalCOFDM
# Inputs2
Outputs1
Common interfaceNo
Product BrandEKSELANS
