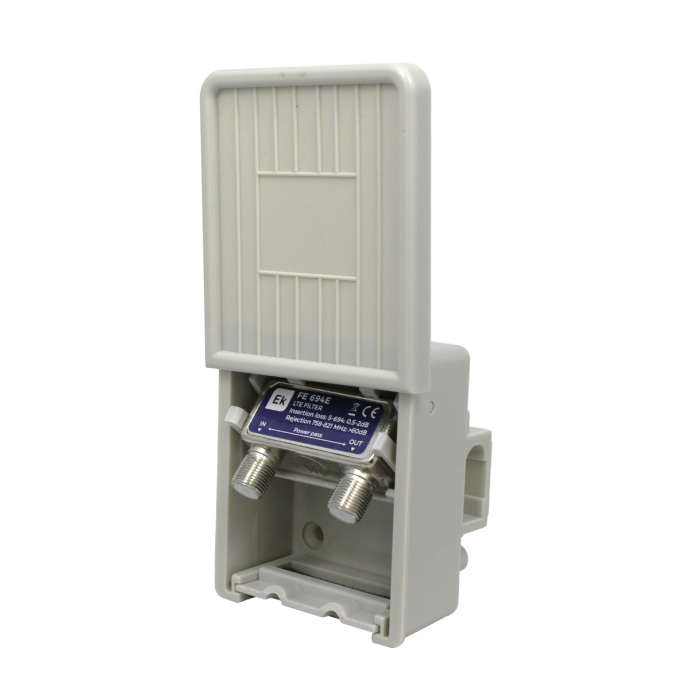

EK LTE2 5G Outdoor Filter with Channel 48 Cutout and F Connector

LTE2 5G FE 694E Ek Filter – Cut in Channel 48 and EK F Connectors

Ek FE 694E is an outdoor LTE2 filter designed to ensure stable TV reception in environments affected by 4G/5G emissions, especially above the channel 48. Its compact and resistant design makes it easy to install on masts or waterproof boxes, making it a practical solution to improve signal quality without complications. Furthermore, its configuration with reversible input/output Allows you to mount it in any position without worrying about signal flow.

This model stands out for its very low passband losses, staying below 2dB up to 680MHz and below 3dB at 694MHz. Therefore, it is an ideal accessory for installations where you want to protect the DTT signal without penalizing the level available in the distribution network.

On the other hand, its high level of LTE/5G rejection, with more than 60dB from 750 MHz, it guarantees effective protection against interference caused by nearby mobile base stations. Installers especially value this performance when working in urban areas or where 5G coverage is intense.

Altogether, the LTE2 FE 694E filter It is a reliable, compact and easy-to-install solution, which provides stability to the signal and avoids cuts or pixelations derived from LTE/5G. Its reversible design and low loss make it an essential component for modern DTT installations.

Reference: EK031030
