Hikvision 2.4GHz 300Mbps Wireless Bridge

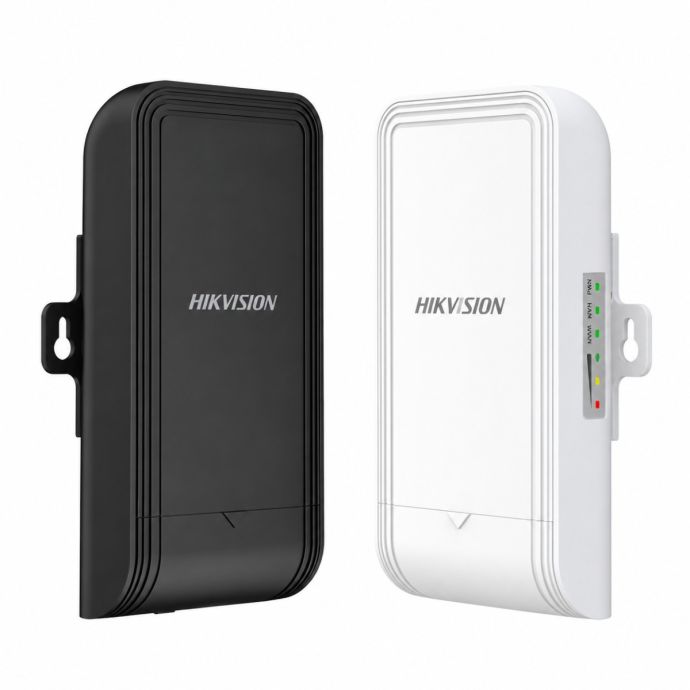

Hikvision DS-3WF0EC-2NT 2.4GHz 300Mbps Wireless Bridge up to 500 m

The Hikvision DS-3WF0EC-2NT replaces long Ethernet cable runs with a stable wireless link for video and data transmission. It is particularly suitable for IP cameras installed in lifts, where it avoids the need for an expensive travelling network cable between the lift car and the building's fixed network infrastructure.

This 2.4 GHz wireless bridge supports IEEE 802.11b/g/n, 2×2 MIMO technology and an air-interface transmission rate of up to 300 Mbps. Its integrated 7 dBi antennas provide wireless transmission distances of up to 500 metres, with Hikvision specifying a PTP throughput of 30 Mbps at 0.5 km in HT40 mode.

The DS-3WF0EC-2NT is supplied as a pair and features 2 × 10/100 Mbps RJ45 ports, 12–24 VDC passive PoE and IP55 protection. It is particularly useful for installers working with IP and WiFi cameras who need to connect a camera to the network without installing a continuous Ethernet cable. It is suitable for both new installations and upgrades to existing wired links; it is not exclusively a replacement part.

In short, the Hikvision DS-3WF0EC-2NT wireless link provides a compact solution for long-distance video and data transmission, especially in lifts and other locations where cabling is difficult or expensive. Its Ethernet connectivity allows easy integration with UTP data cable infrastructure, while signal indicators and Hikvision management tools simplify professional installation and maintenance.

Reference: DS-3WF0EC-2NT
