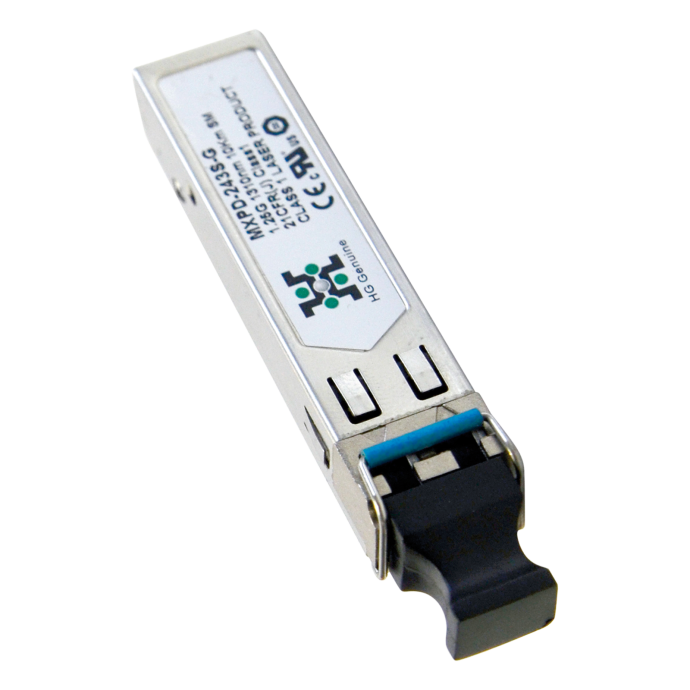

Ethernet Adapter - Televes 2 fibers 769210 from Televes

The Televes 769210 adapter connects to the Ethernet input of a CoaxData device so that it has access to an ethernet signal via fiber optics.

What technical characteristics does the 769210 adapter have?

• Operating values Units Min. Typ. Max.
• Maximum voltage supply V 3.13 - 3.46
• Operating temperature ° C -20 - +60
• Data rate Mbps - - 1250
• Max distance Km - - 10
• Optical transmitter Units Min. Typ. Max.
• Value of Wavelength nm 1260 1310 1360
• Bandwidth nm - - 4
• Differential input voltage mV 500 - 2400
• Optical output power dBm -9 -5 -3
• Up / down time ps - - 260
• Voltage TX Disable V 2.0 - Vcc
• Voltage TX Fault V 2.0 - Vcc
• Optical receiver Min. Units. Typ. Max.
• Differential output voltage mV 400 - 1600
• Optical sensitivity of the dBm receiver - -19
• Maximum input optical power dBm -3 - -
• Voltage of "loss of signal" V 2 - -
• Signal detection range dBm -35 - -20
• Signal detection hysteresis dB 0.5 - 6
