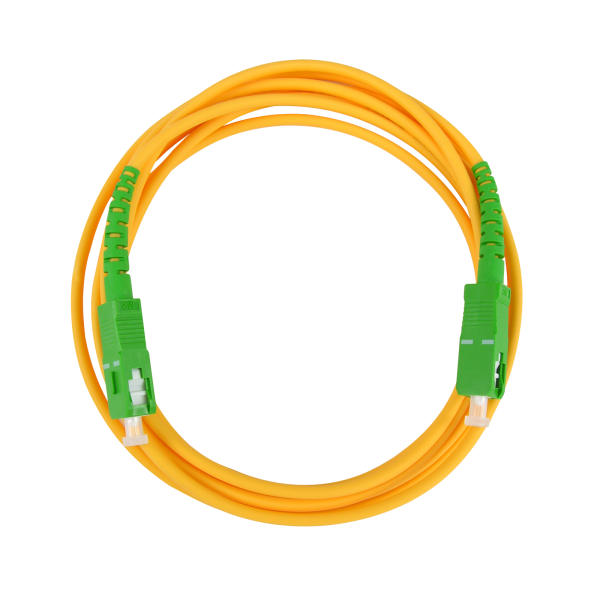

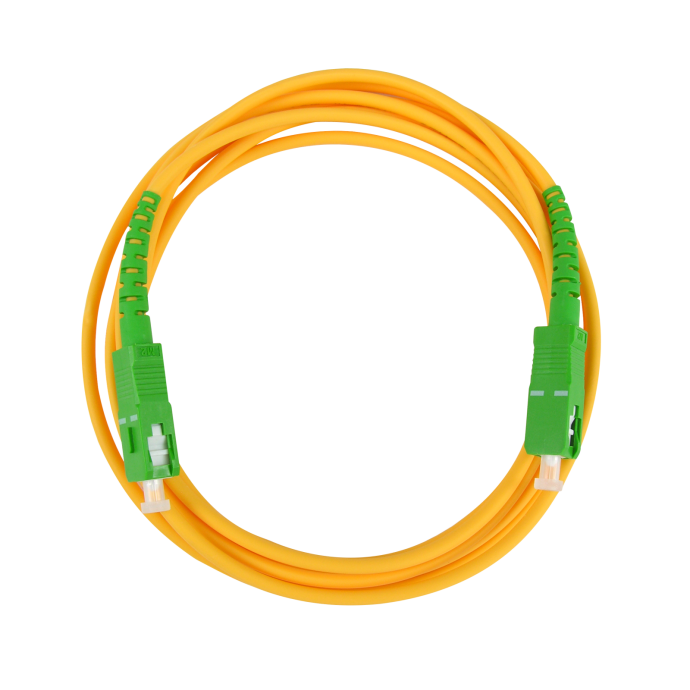

Televes 2m Fiber Optic Patch Cord with SC/APC Connectors

SKU
TEL232621
Brands: Televes
€4.69
Tax included
% Discount for professionals
Televes
Availability: In stock
24/48 Hours

Fiber Optic Patch Cord with 2m SC/APC connectors from Televes

Do you want a 2 meter hose with SC/APC connectorization? The Televes 232621 fiber optic patch cord is a single mode patch cord (SM) pre-connected with SC/APC connectors for the interconnection of optical equipment in FTTH optical networks.

The cover is halogen free (LSFH) and its use indoors is recommended. This patch cord is the one used in the routes of the different data operators.

One of its most notable points is the short boot at one end , which facilitates mounting to wall outlets and reduces the risk of attenuation due to unwanted curvatures , guaranteeing a more stable transmission. In addition, the short boot ensures better sliding through pipes and allows working in small spaces without compromising the radius of curvature.

Made with fiber IT-T G.657.A2 , the hose offers high levels of reliability and low attenuation . Its robust construction and compact diameter of 3 mm make it a versatile element for residential, commercial or professional optical installations.

Supplied in individual bag with hanger.

Reference: TEL232621

-
+

Expanded Information on the Fiber Optic Patch Cord with 2m SC/APC connectors from Televes

Practical applications of the Televes 232621 Fiber Optic Patch Cord

1. FTTH installations and indoor optical networks

This patch cord is ideal for the interconnection between ONT, optical rosettes, interior CTO and active equipment within homes and technical rooms. Your fiber monomodo G.657.A1 It allows working with more demanding curvature radii without compromising the signal, reducing the risk of losses due to pronounced curvatures in pipelines, small registers or distribution trays. Thanks to its construction 3mm simplex with LSFH cover , is especially recommended for indoor installations that require low smoke emission and greater fire safety.

2. Professional equipment and small optical interconnections

Its length 2 meters makes it perfect for making short optical bridges between devices, panels, distributors or optical modules within racks or communications cabinets. The connectors SC/APC They guarantee a reliable low-loss connection on very low attenuation links, maintaining the stability necessary for critical links in GPON, XGS-PON networks or precision optical instrumentation.



Technical specifications of the Fiber Optic Patch Cord with 2m SC/APC connectors from Televes

Fiber type   Monomodo (ITU-TG.657.A2)
Fiber type category   OS1
Fiber core diameter μm 9
Fiber cladding diameter μm 125
Fiber coating diameter μm 250
Cable structure   Tight
Fiber structure diameter mm 0.9
Diameter Outer cover mm 3
Material Outer cover   LSFH
blocking gel   No
Dimming 1310nm dB/km
Dimming 1490nm dB/km
Dimming 1550nm dB/km
Insertion losses in connector 2 dB
Return losses in connector 2 dB > 60
Optical connector type 1   SC
Polishing Type (Optical Connector 1)   APC
Optical connector type 2   SC
Polishing Type (Optical Connector 2)   APC
Cable length m 2
Traction protection element   Aramid fibers
Minimum curvature radius mm 15
Operating temperature °C -20...70



More Information
More Information
EAN 8424450187029
Hight 0.000
Length 0.000
Width 0.000
CTI - System Monomode
CTI - Serie 2m
Fiber type Singlemode
Entorno Interior
Color Yellow
Usar stock disponible No
Product Brand Televes
