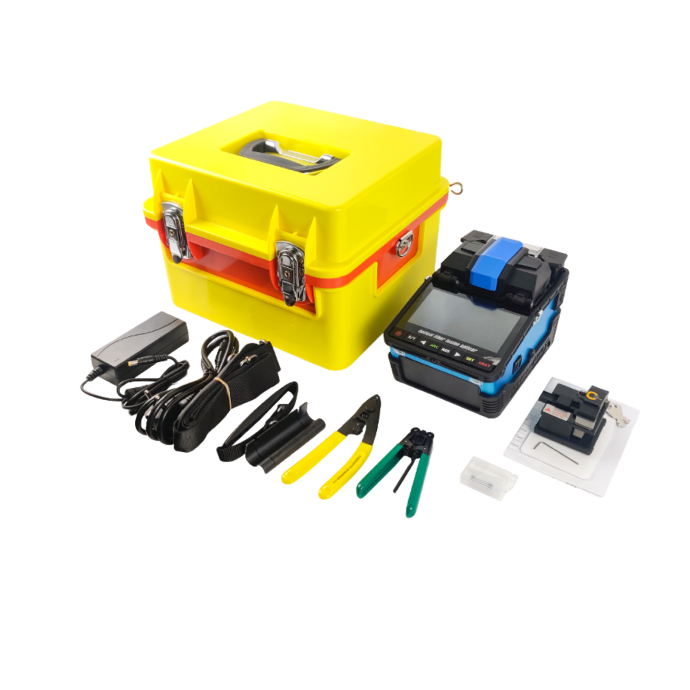

EK KF-3000 6 Motor Fiber Optic Fusion Splicer

Practical applications of the KF-3000 Fusion Splicer (6 motors – core to core)

Practical case 1: FTTH installations in internal and external plants

The KF-3000 It is ideal for fiber deployments in buildings, CTOs, registers and terminal boxes. Thanks to your ultra-low splices (0.01–0.02 dB) and core-to-core alignment, the installer can guarantee optical continuity even in very demanding networks. Its robust suitcase and long-lasting battery allow it to work outdoors and in areas where there is no electrical power available.

Practical case 2: Maintenance and repair of operator networks

For technicians performing repairs or replacements on existing networks, the KF-3000 offers dual monitoring X/Y , fiber end self-test and adjustable programs. This allows for quick diagnostics and consistent splicing, even in damaged fibers or when working under adverse conditions (dirt, rain, dust or wind up to 20 m/s).

Fiber capacity and types

• SM (G.652, G.657), MM (G.651), DS (G.653), NZDS (G.655)

• Coating diameter: 0.25 a 3 mm

• Preparation length: 10–16 mm

Splicing performance

• Typical dimming:

  • 0.02 dB (SM)

  • 0.01 dB (MM)

• Return losses: ≥ 60 dB

• Melting time: 8 s

• Baking time: 20 s (variable)

• Tensile test: 2.0 N

• Sleeves: 20–60 mm

Programming

• 100 splicing programs (10 preset 90 manual)

• 50 oven programs

• Self-calibration

• Endpoint auto-check

Screen and cameras

• Touch screen HD 5”

• Dual cameras X/Y 90°

• Expansion up to 300×

Memory

• 10,000 fusion results

• 2,000 images

Power and battery

• AC Adapter 100–240 V

• Li-ion battery 13.5 V / 5200 mAh

• Autonomy: 300 complete fusions

Environmental conditions

• Job: -20 ºC and 50 ºC , up to 95% RH

• Altitude: 0–5000 m

• Resistant to: dust, rain, dirt and wind 20 m/s

Dimensions and weight

• 222 × 140 × 138 mm

• 1.95 kg (with battery)
