main product photo

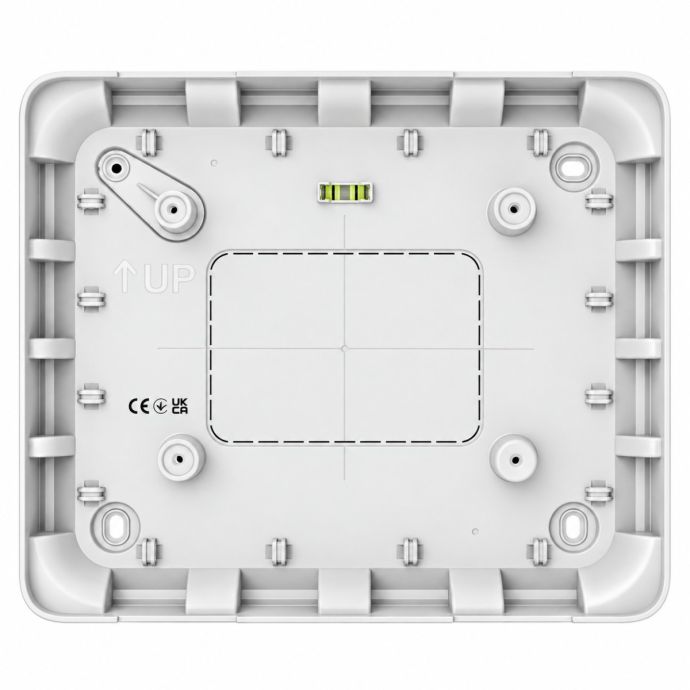

AJAX GlandBox tamper-protection box in white with 16 cable gland entries (up to 20 mm)

SKU
AJ-EN54-GLANDBOX-W
Brands: AJAX
€65.32
Tax included
% Discount for professionals
AJAX
Availability: On request
1 to 7 days

Ajax GlandBox for surface mounting the EN54 Fire Hub Jeweller

The Ajax GlandBox AJ-EN54-GLANDBOX-W provides a clean, secure and professional surface-mounting solution for the fire alarm control panel. It enables neat lateral cable entry when cables cannot be concealed inside the wall or routed through recessed conduits.

It features 16 cable gland mounting points, four on each side, supporting diameters of up to 20 mm. Integrated cable retainers, a built-in bubble level, orientation marking and centring guides help installers route the wiring and position the unit accurately.

This surface-mounting box is designed exclusively for the Ajax EN54 Fire Hub Jeweller white fire alarm control panel. It is suitable for new installations and for adapting an existing panel to surface-run cabling; it is not a universal replacement part for other hubs.

Its perforated section aligns with the control panel’s tamper switch to retain removal and tampering detection when the assembly is correctly installed. It is intended for indoor use, provides IP20 protection and is supplied without cable glands.

Reference: AJ-EN54-GLANDBOX-W

-
+

Extended information about the Ajax GlandBox with 16 cable gland entries in white

Practical applications of the Ajax GlandBox AJ-EN54-GLANDBOX-W

Example 1. Installing a fire alarm control panel in a historic building

During the refurbishment of a protected building where wall chasing is not permitted, the installer can surface-mount the GlandBox and route the power, Ethernet and signal cables laterally into the EN54 Fire Hub Jeweller. This avoids altering the wall while providing a neat installation that remains accessible for inspection and maintenance.

Example 2. Relocating the control panel in commercial premises

When refurbishment work requires the control panel to be moved and the existing wiring runs through surface trunking, the GlandBox provides an orderly transition into the panel enclosure. Its cable gland mounting points and internal retainers help secure each cable, while the perforated section preserves the operation of the control panel’s tamper switch when the assembly is correctly installed.

Package contents of the Ajax GlandBox AJ-EN54-GLANDBOX-W

  • Ajax GlandBox in white.
  • Installation kit.
  • Quick start guide.
  • Cable glands are not included.

Technical specifications of the Ajax GlandBox AJ-EN54-GLANDBOX-W

Feature Specification
Brand Ajax
Reference AJ-EN54-GLANDBOX-W
Commercial name GlandBox
Product type Wiring accessory and surface-mounting base
Application Lateral cable entry, routing and management
Compatible equipment EN54 Fire Hub Jeweller
Cable gland mounting points 16 points, four on each side
Supported cable gland diameter Up to 20 mm
Recommended drilling tool Hole saw for plastic with a diameter of up to 20 mm
Tamper protection Perforated section aligned with the EN54 Fire Hub Jeweller tamper switch
Built-in electronics None
Installation aids Built-in bubble level, UP marking and control panel centre marking
Cable management Internal retainers for securing and grouping cables
Dimensions 263 × 223 × 40 mm
Weight 335 g
Operating temperature From -10 °C to +40 °C
Operating humidity Up to 75%, without condensation
Protection rating IP20
Flammability rating UL 94 V-0
Installation environment Indoor use
Colour White
Cable glands included No
Power supply Not required
Installation type New installations or adaptation to surface-run wiring
